Full HD, 30 fps. 150° Wide Viewing Angle. Rear View camera combines as a reverse camera to aid parking.
- ΠΕΡΙΓΡΑΦΗ
Your Third Eye On The Road.
Install a Pioneer Dash Camera for peace of mind by protecting you from fraudulent insurance claims by being able to use the recorded footage in the event of an incident, giving you the ability to identify who is at fault quickly and easily.

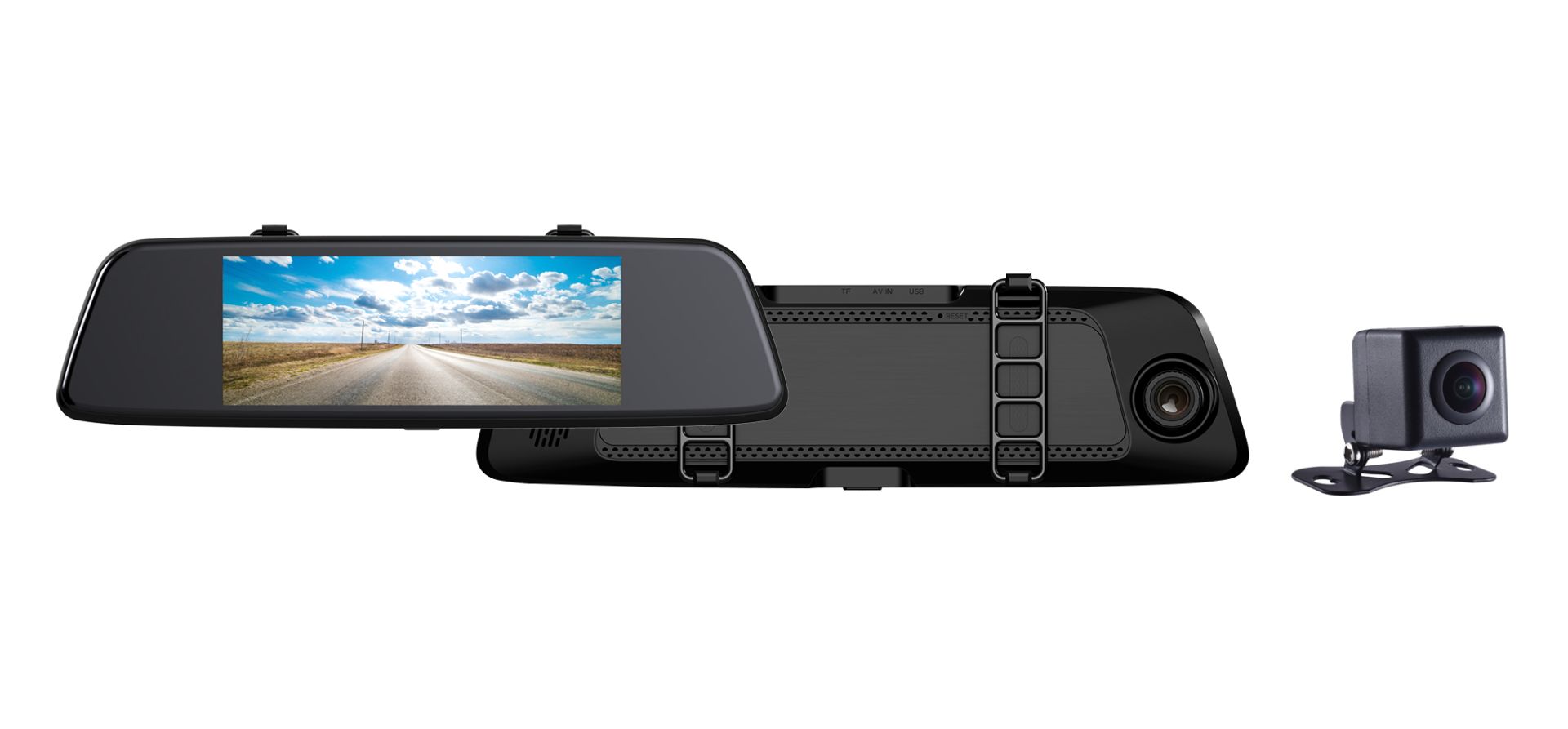

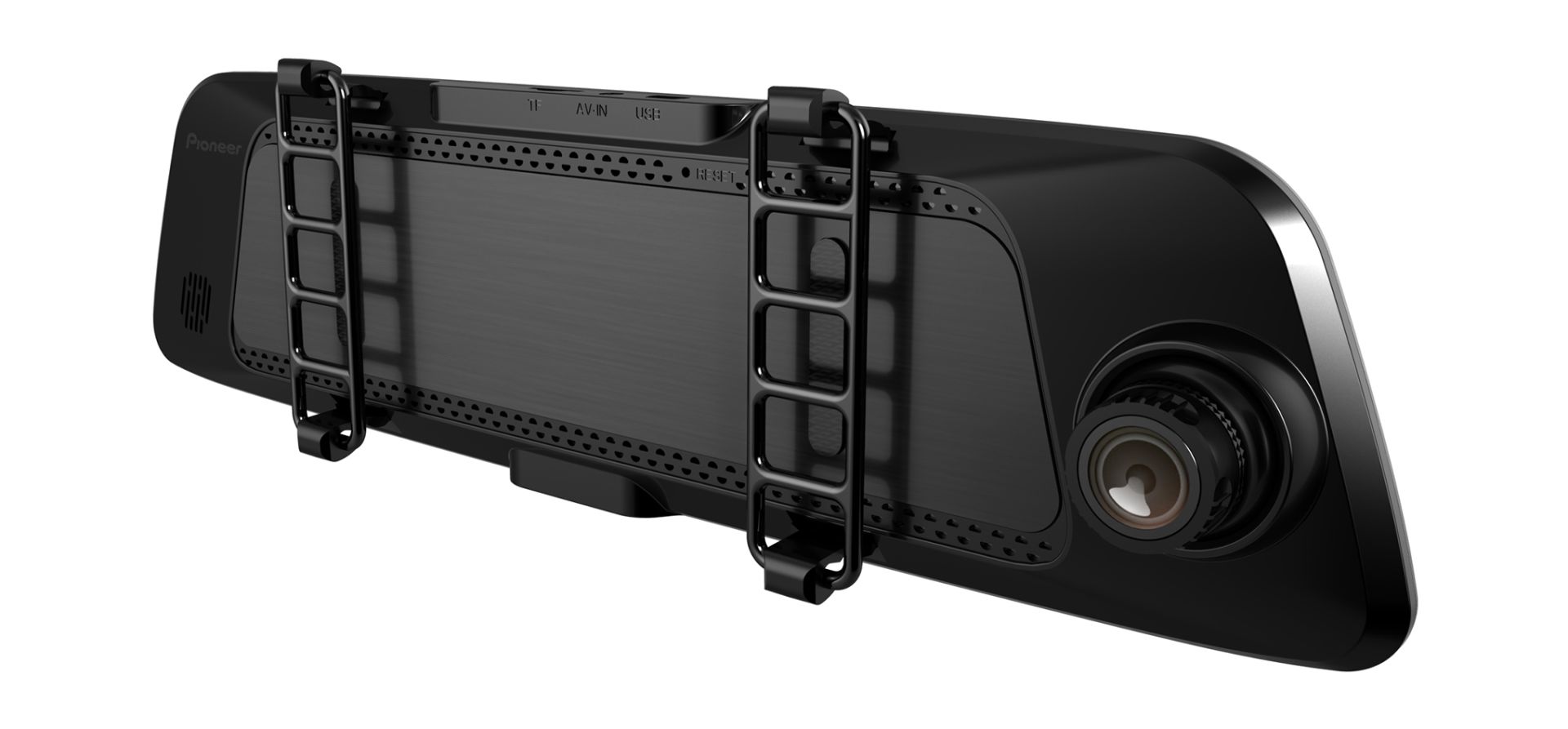

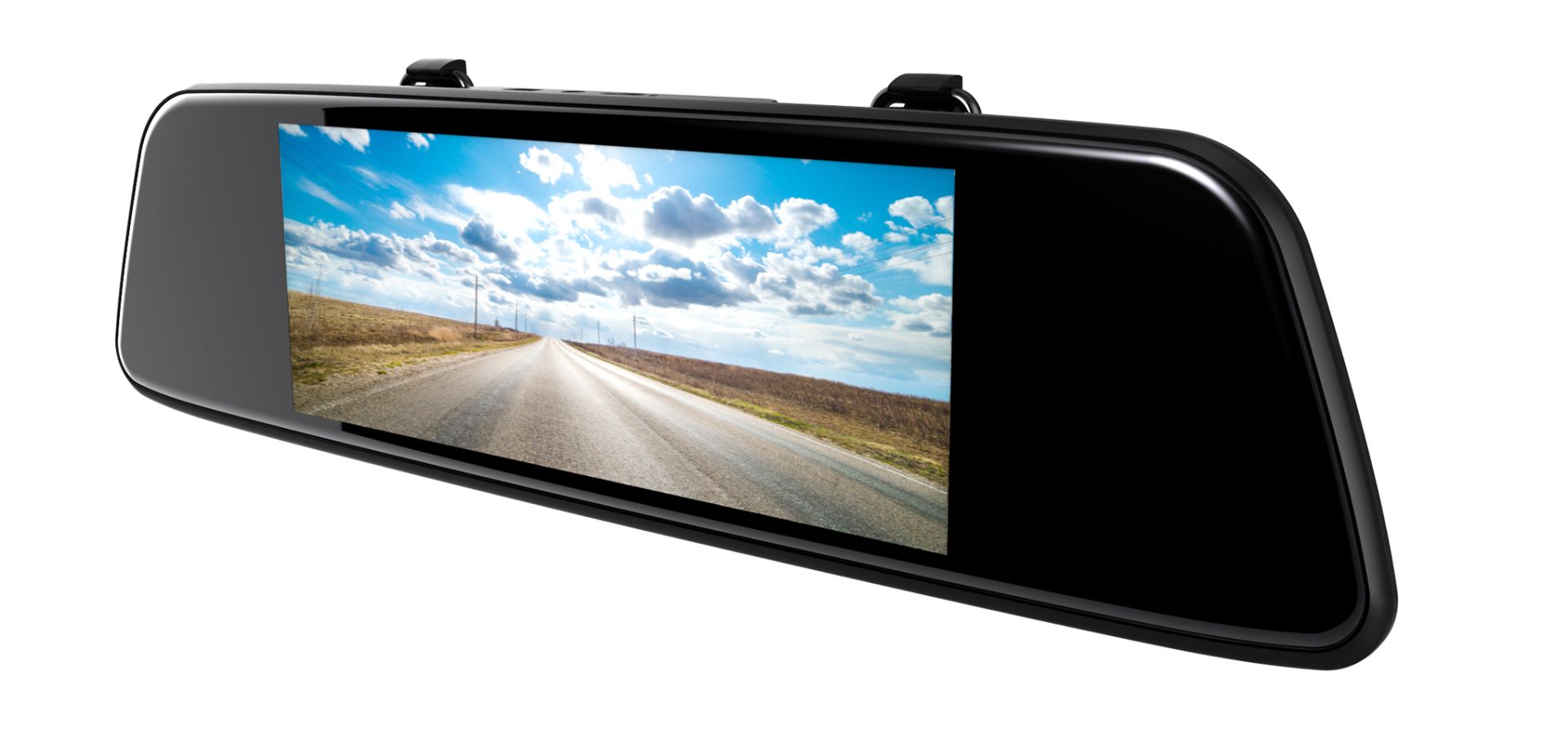

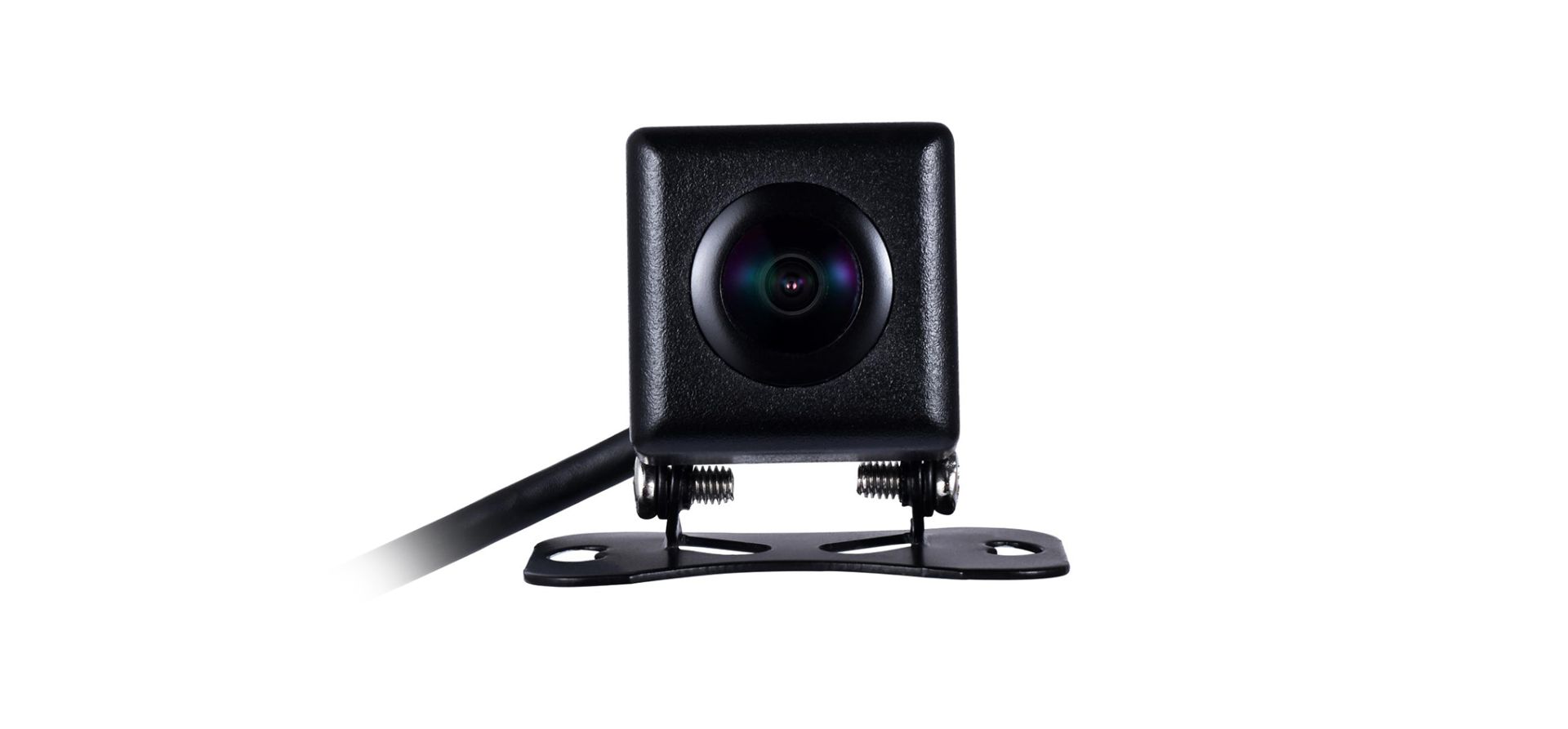

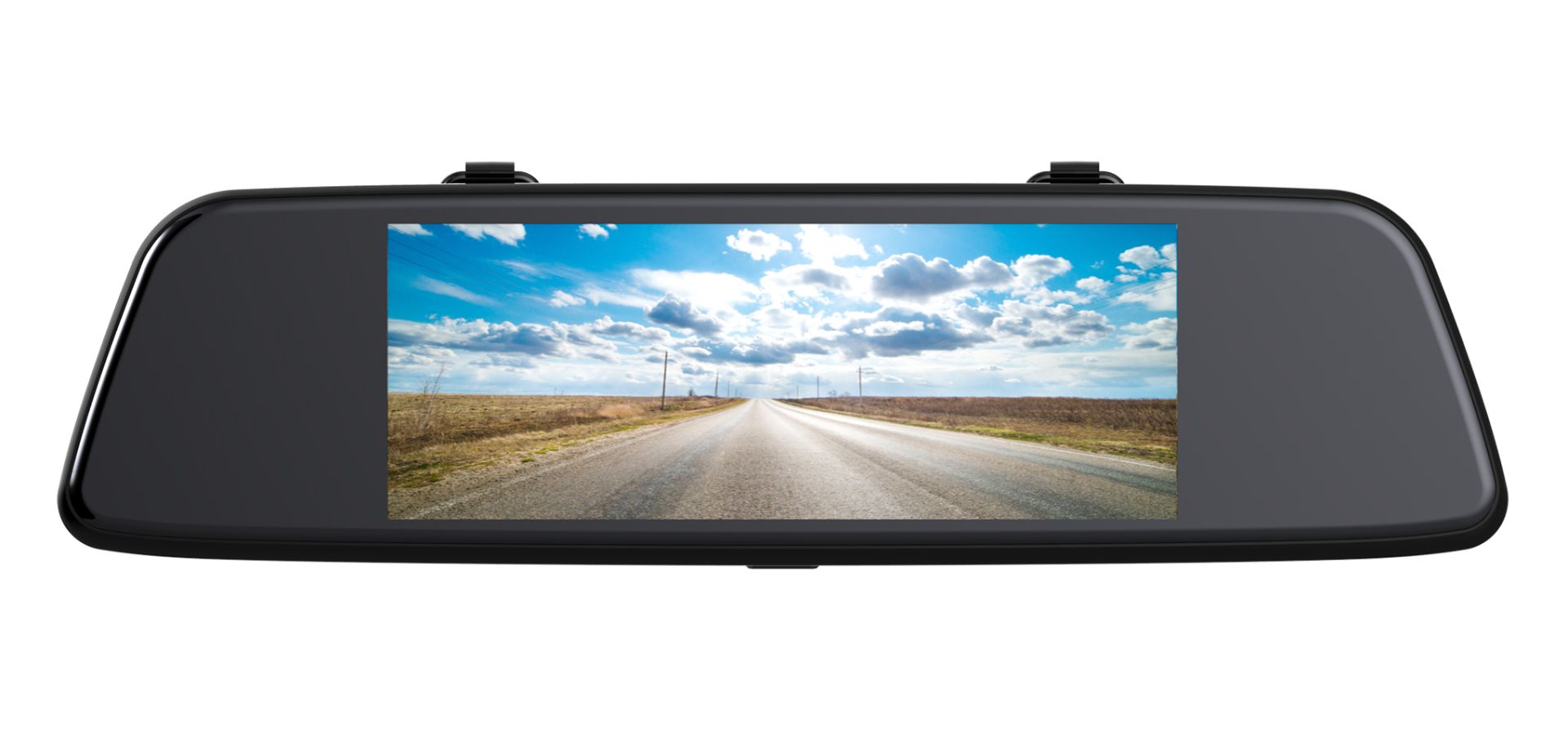

The Pioneer VREC-150MD is a 2-Channel front facing ‘mirror type’ Dash Camera with a 6.7″ touchscreen, that mounts over the centre rear view mirror. The front camera has a Wide Viewing Angle of 150°, allowing you to capture data that other cameras cannot. Pioneer’s VREC-150MD also includes a Rear View camera, designed to be mounted externally for rear view recording and combines as a reverse camera to aid parking by expanding your field of vision.
The VREC-150MD is easy to connect thanks to the supplied cigar charger power connector.
The VREC-150MD is compatible with a 8 to 64GB microSD Card (Class 10) maximum.
Pioneer does not guarantee microSD Card compatibility.
microSD Card sold separately.
Specifications
- 2-Channel Dash CamFront and rear Dash Camera package, recording both the front and rear.
- Full HDIn addition to installing a CMOS sensor that realises high sensitivity, this product records in Full HD (1920 x 1080p) with about 2 million pixels of high resolution so you can record clear high-quality characters such as a license plate, in the day or night.
- 150° Wide Viewing AngleRecord larger amounts of information with less blind spots, such as a motorcycle passing from the left or right or a pedestrian or bicycle jumping out.
- Wide Dynamic Range (WDR)Enhances the light and dark dynamic range and corrects the images, compensating for “overexposure” and “underexposure” that occurs when the brightness changes suddenly, such as at night, or when entering or exiting a tunnel.
Main Features
| 2-Channel Dash Cam | |
| Full HD | |
| 150° Wide Viewing Angle | |
| Wide Dynamic Range (WDR) | |
| Image Quality | Front: Full HD (1920 x 1080p) Rear: AHD (1280 x 720p) |
| Viewing Angle | Front Camera: Horizontal 118°, Vertical 60°, Diagonal 150° Rear Camera: Horizontal 105°, Vertical 60°, Diagonal 120° |
| F-Value | Front Camera: F2.0 Rear Camera: F2.5 |
| Frame Rate (fps) | Front Camera: 30 fps Rear Camera: 25 fps |
| Image Correction | Front Camera: WDR Rear Camera: N/A |
| Camera Type | Front and Rear |
| Rear Camera | Included |
| Screen | 6.7″ Full Colour IPS LCD Touchscreen |
| G Sensor | |
| Sound Recording | On / Off |
| Recording Modes | Normal / Event / Photo |
| Continuous Recording Time | Off / 1 min / 3 min / 5 min |
| Event Recording Times | 1 min / 3 min / 5 min |
| Manual Recording Times | 1 min / 3 min / 5 min |
| Video Recording Format | MOV |
| Still Image Capture | |
| Still Image Format | JPEG |
| Date and Time Setting | |
| Loop Video Recording | |
| Automatically Start Recording | |
| MicroSD Card Capacity | 8 GB to 64 GB |
| MicroSD Card Compatibility | microSDXC / microSDHC memory card class 10 |
| MicroSD Card Format Warning | |
| MicroSD Card Format Free | |
| Battery Type | Supercapacitor |
| Power Consumption | Approximately 10.8 W / 12 V |
| Power Supply Voltage | 12 V / 24 V DC |
| Power Connection Type | Cigar charger power cable |
| Power Cable Length | 5 m |
| Rear Camera Cable Length | 6 m |
| Operating Temperature | -10° to +60° |
| Dimensions (W x H x D) | Front Camera: 295 mm x 78.5 mm x 33.5 mm Rear Camera: 26.5 mm x 23.7 mm x 23.7 mm |
| Weight | Front Camera: 313g (Excluding installation brackets, etc.) Rear Camera: 30.2g（Excluding cable.) 130.5g (including cable) |
| Graphic User Interface (GUI) Languages | English / French / German / Italian / Spanish / Russian |
| What’s In The Box | Front Camera / Rear Camera / Cigar Charger Power Cable / Rear Camera Connection Cable / USB Cable for PC Connection / User Manual (Russian) / Warranty Document |
