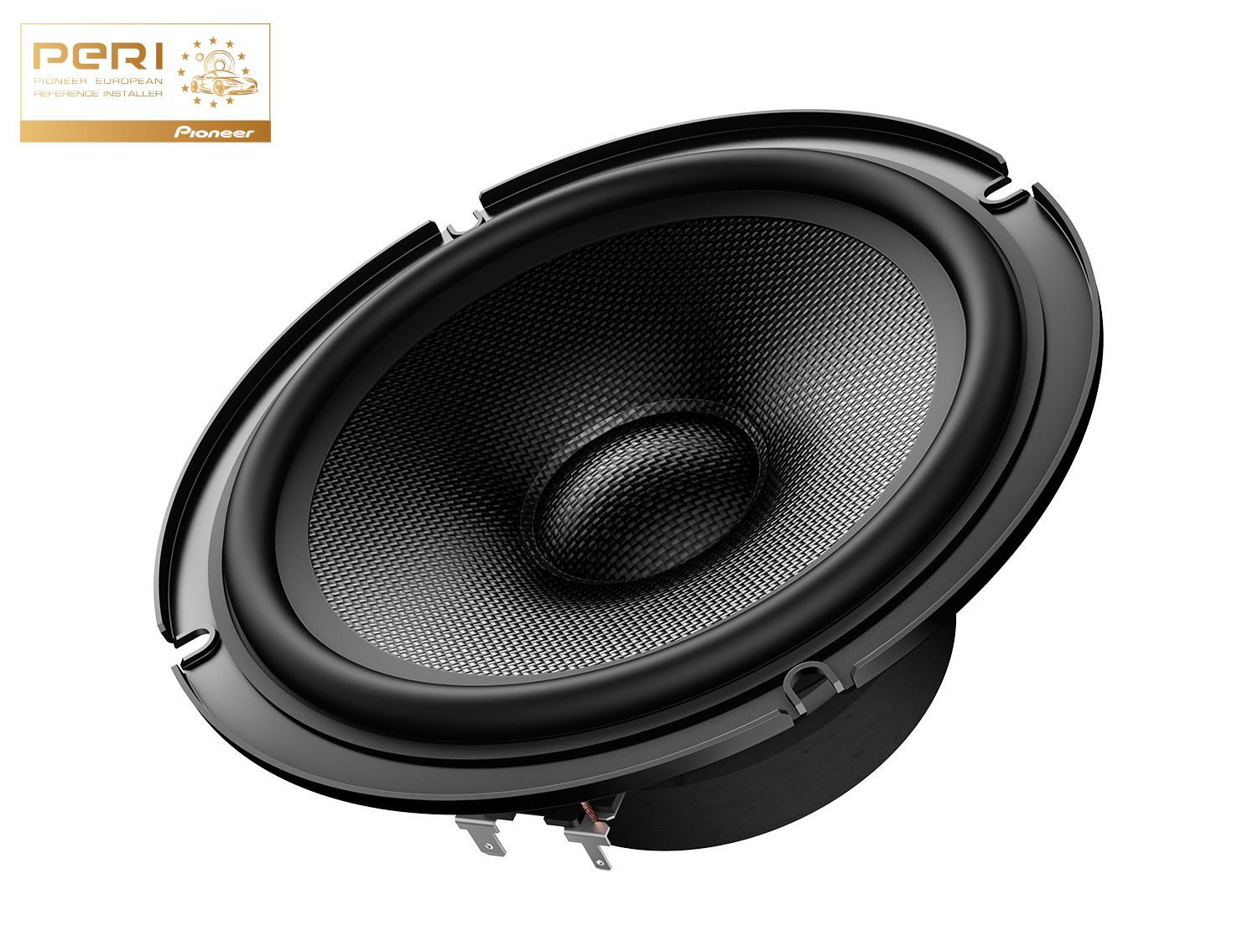

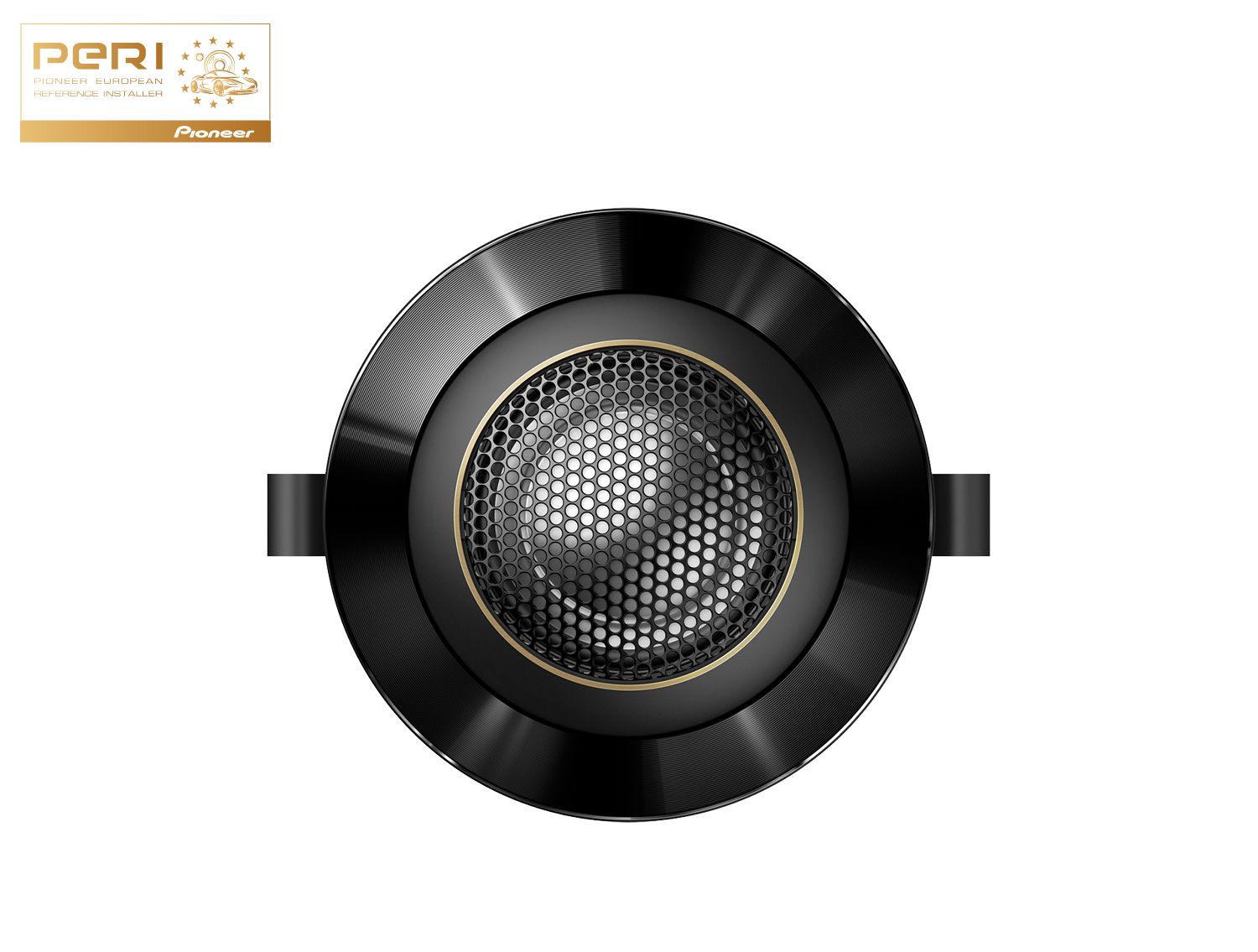

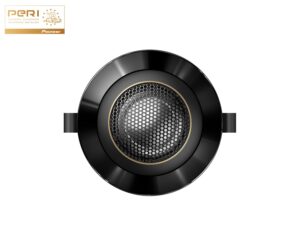

Discover the Pioneer TS-Z Series speakers. Utilising Pioneer’s renowned ‘Open & Smooth’ sound concept, the TS-Z65CH also now features a wider frequency range and a wider dynamic range than any other Pioneer speaker, meaning the Pioneer TS-Z65CH can now reproduce ‘High Resolution Audio’. This also means the TS-Z Series produces less distortion at high volume levels. Adding to the sound characteristics, the tweeter on the TS-Z Series is designed to swivel, once installed, to give you the best direction of sound possible, according to where it is placed in the vehicle.
ΠΕΡΙΓΡΑΦΗ

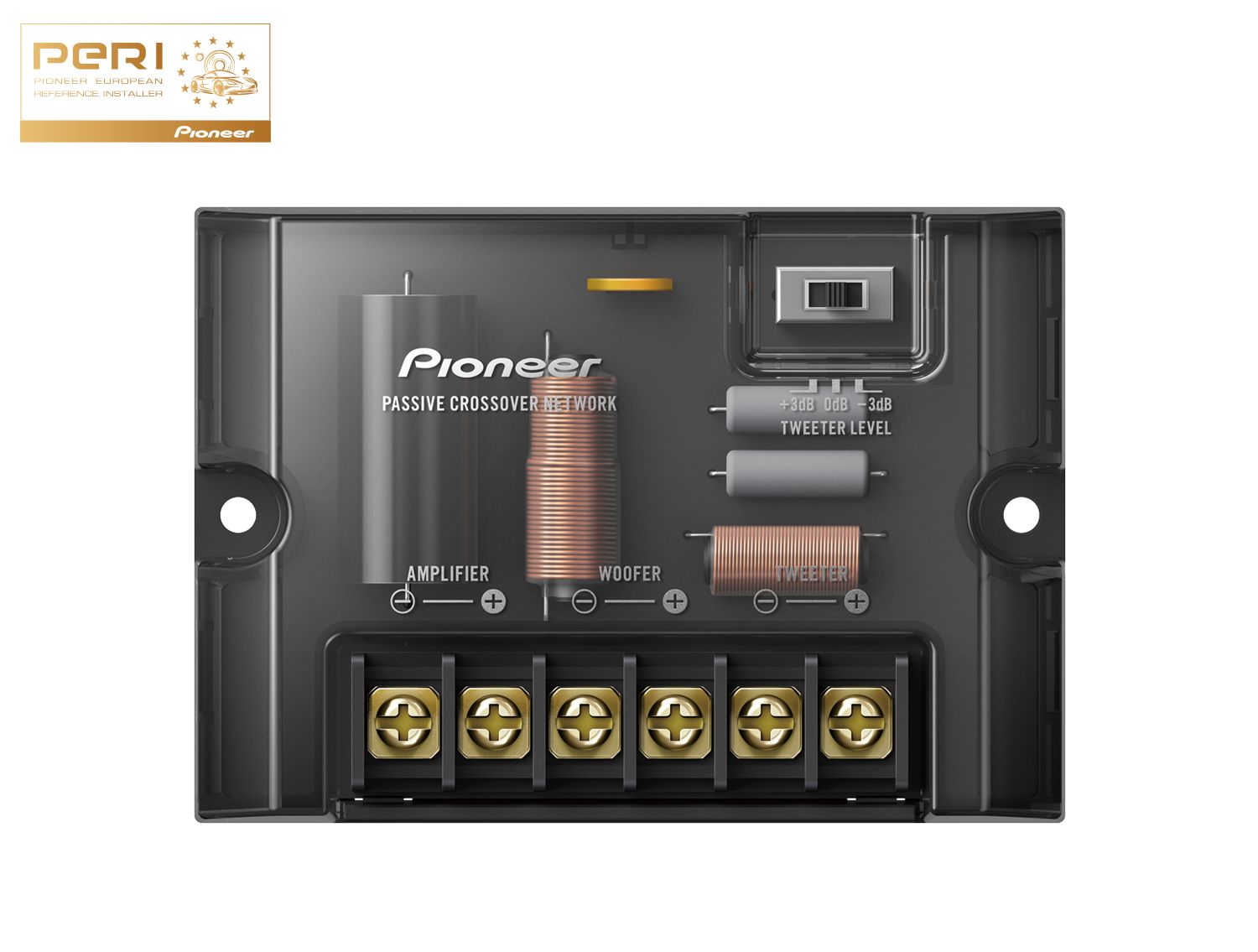

An external passive crossover featuring audiophile-grade components offer not only exceptional sound quality, but also even more flexibility when it comes to installation possibilities. Every element if the TS-Z65CH is designed to offer you a high-quality sound experience that is natural and truly immersive with exceptional detail.

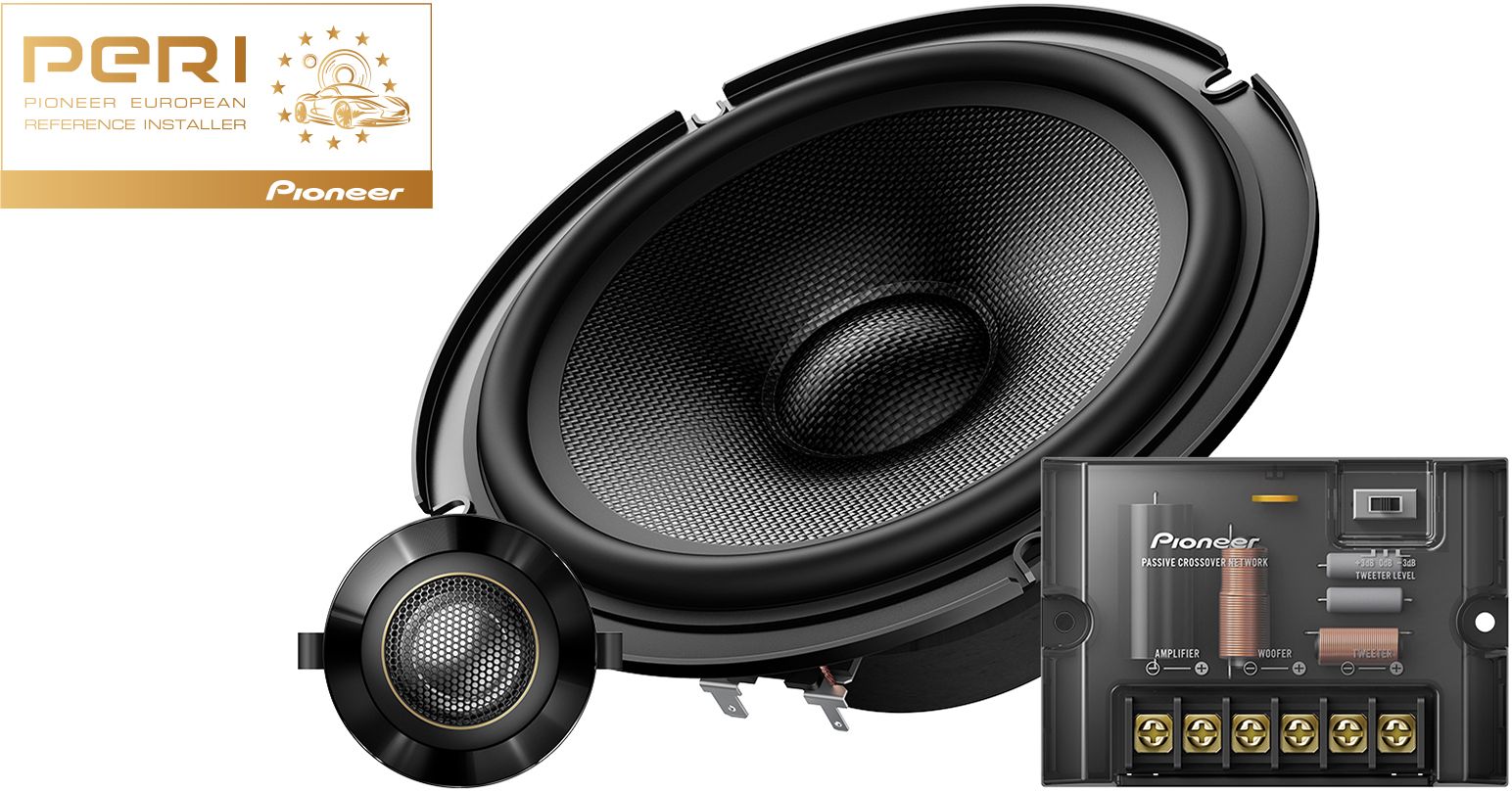

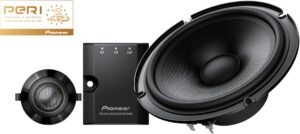

Upgrade your sound with the Pioneer TS-Z65CH. This 17cm 2-Way component speaker system delivers up to 330 W Maximum power and 110 W Nominal power.
During Pioneer’s remarkable 80-year history, our loudspeaker technology has achieved the limits of quality sound reproduction, with an uncompromised design that only Pioneer can provide. Pioneer designs, engineers and manufactures each Pioneer loudspeaker in-house to Pioneer’s exact performance and quality standards. That is why we are proud to call our latest Z and D series ‘High Performance’ automotive loudspeakers. Pioneer is passionate in reproducing music in the purest form, and this can only be achieved if the speakers are correctly installed, maximising their performance, in your specific vehicle. To do this, Pioneer has a team of expert professionals across Europe who have the knowledge, experience and passion to be able to install Pioneer’s Z and D series, giving you the best audio experience possible. These Pioneer partners can sell and install the Pioneer Z and D series. Don’t just listen to your music, HEAR MORE.
Full specifications
| Size | 17 cm |
| Maximum power | 330 W |
| Nominal input power | 110 W |
| Frequency response | 30 – 96.000 |
| Sensitivity | 85 dB |
| Impedance | 4 Ω |
| Crossover Frequency | 2000 Hz |
| Mounting Depth | 65 mm. Tweeter: 15 mm |
| Cut-out Hole | 144 mm |
| Woofer material | Aramid Fiber plus Cellulose Fiber Dual Layer Cone |
| Voice Coil type | Copper Round Wire 2-Layer |
| Voice Coil bobbin type | Glass Imide |
| Lowest resonance frequency | 57 Hz |
| Tweeter size | 29 mm |
| Tweeter material | Aluminium Hard Dome |
| Magnets | Woofer: Ferrite Tweeter: Neodymium |
| Weight | 1.26 kg |
| High Resolution Audio | |
| Open & SmoothTM | |
| 2-Way Component | |
| PERI Pioneer European Reference Installer | Pioneer has a team of expert professionals across Europe who have the knowledge, experience and passion to be able to sell and install the Pioneer’s Z and D series. |
