Powerful Bass, without losing space.

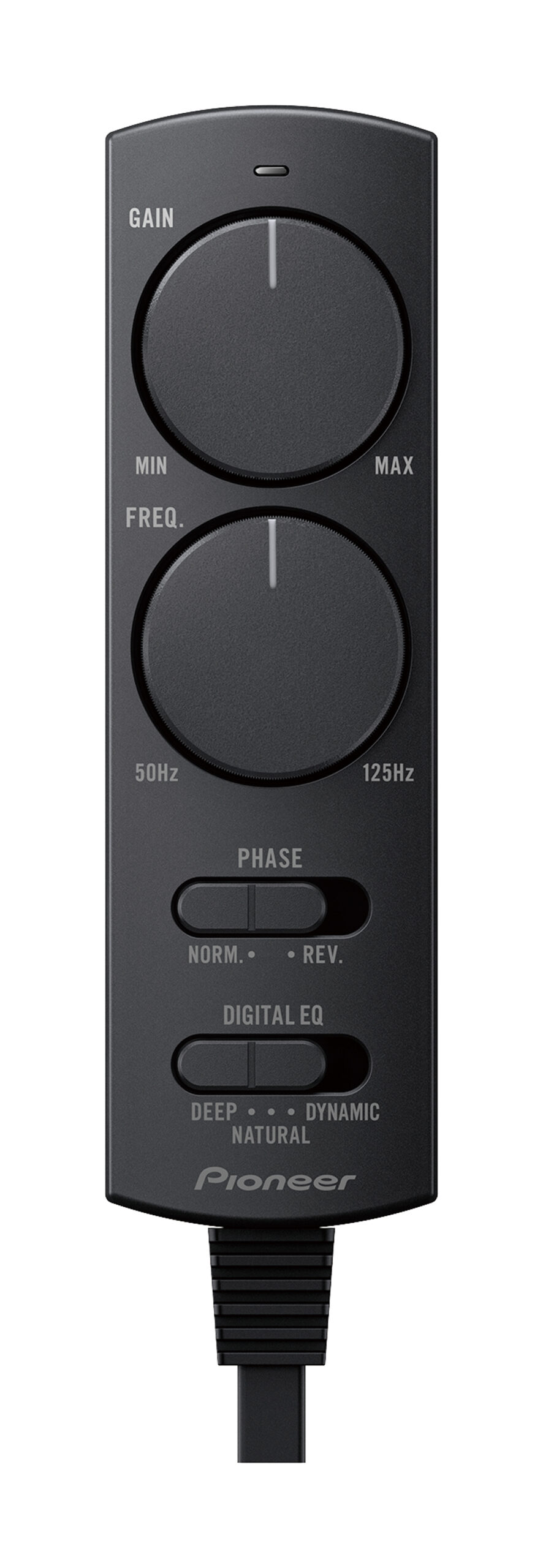

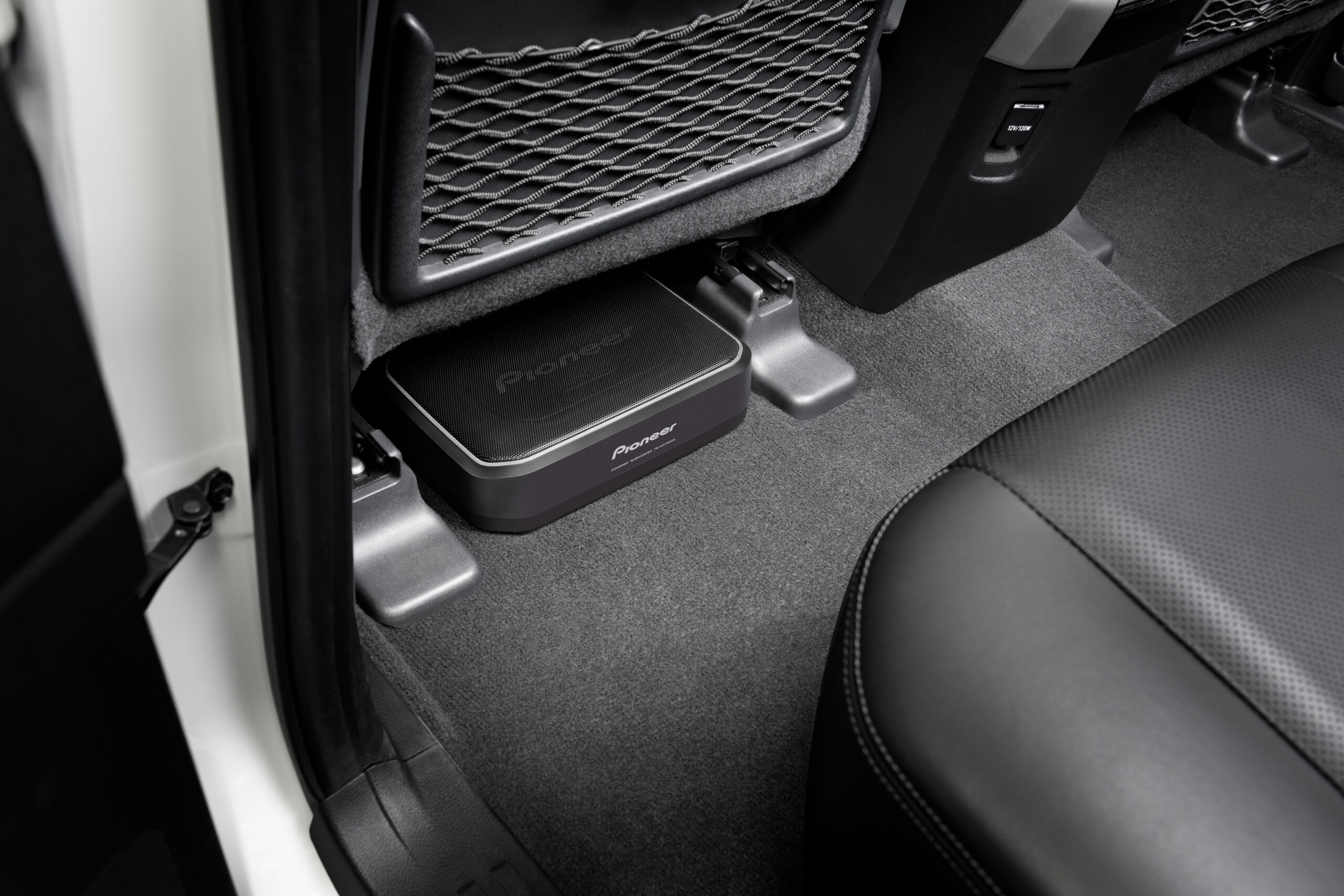

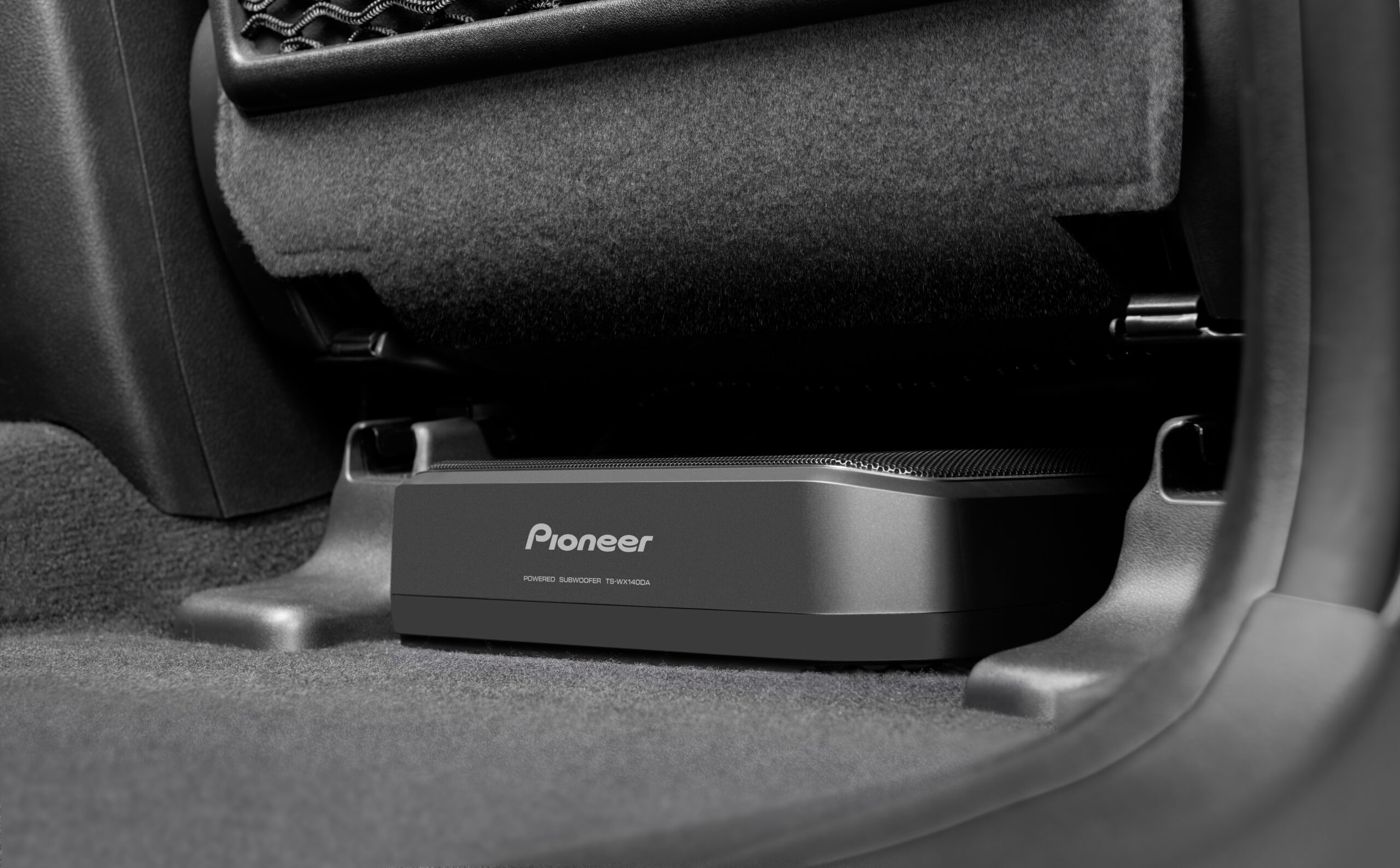

Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.
Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.

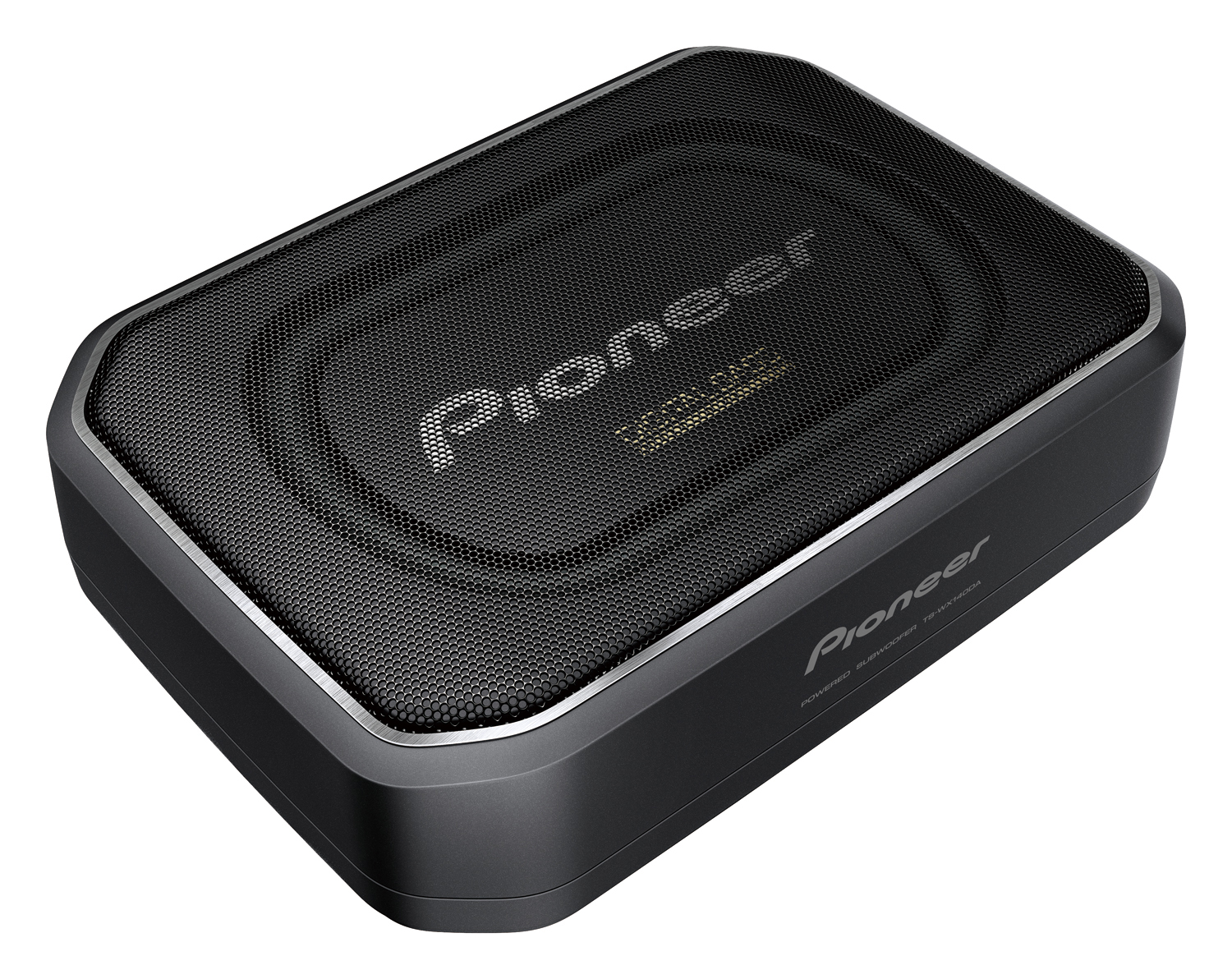

TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.
Specifications
![EV Optimized](https://www.pioneer-car.eu/eur/sites/pioneer_eu/files/styles/thumbnail/https/products.pioneer-car.eu/sites/pioneer_products/files/property_icon/pioneer_ev_optimized_icon.png?itok=EH_7L0ah)
![CarSoundFit App](https://www.pioneer-car.eu/eur/sites/pioneer_eu/files/styles/thumbnail/https/products.pioneer-car.eu/sites/pioneer_products/files/property_icon/carsoundfit.jpg?itok=C0W4kJmX)
![DIGITAL BASS CONTROL](https://www.pioneer-car.eu/eur/sites/pioneer_eu/files/styles/thumbnail/https/products.pioneer-car.eu/sites/pioneer_products/files/property_icon/digitalbasscontrol.jpg?itok=KiCWxO63)
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
EV Optimized | |
CarSoundFit App | |
DIGITAL BASS CONTROL | |
Size | 20 cm |
Maximum power | 170 W |
Continuous power output | 50 W |
Frequency response | DEEP Bass Mode: 20 – 200 Hz NATURAL Bass Mode: 40 – 200 Hz DYNAMIC Bass Mode: 40 – 160 Hz |
Sensitivity | DEEP Bass Mode: 95 dB NATURAL Bass Mode: 98 dB DYNAMIC Bass Mode: 100 dB |
Woofer material | Aluminium |
Surround | Urethane |
Voice Coil type | Copper Round Wire 4-Layer |
Voice Coil bobbin type | Glass Imide |
Magnets | Strontium |
Weight | 3,1 kg |
Dimensions (W x H x D) | 280 x 200 x 70 |
