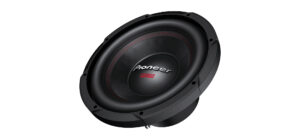

Pioneer TS-W3010PRO PRO Shuriken series - 30 cm High Efficiency Subwoofer. (1500 W) 189.00

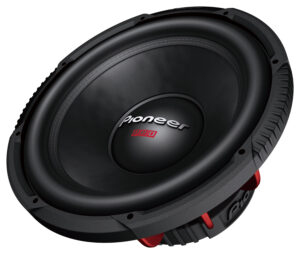

Pioneer TS-W3820PRO Samurai series - 15" High Efficiency Subwoofer. (3500 W) 349.00

Εξαντλημένο

Κωδικός προϊόντος:TS-W3020PRO

279.00

Εξαντλημένο

Pioneer

Super Power !

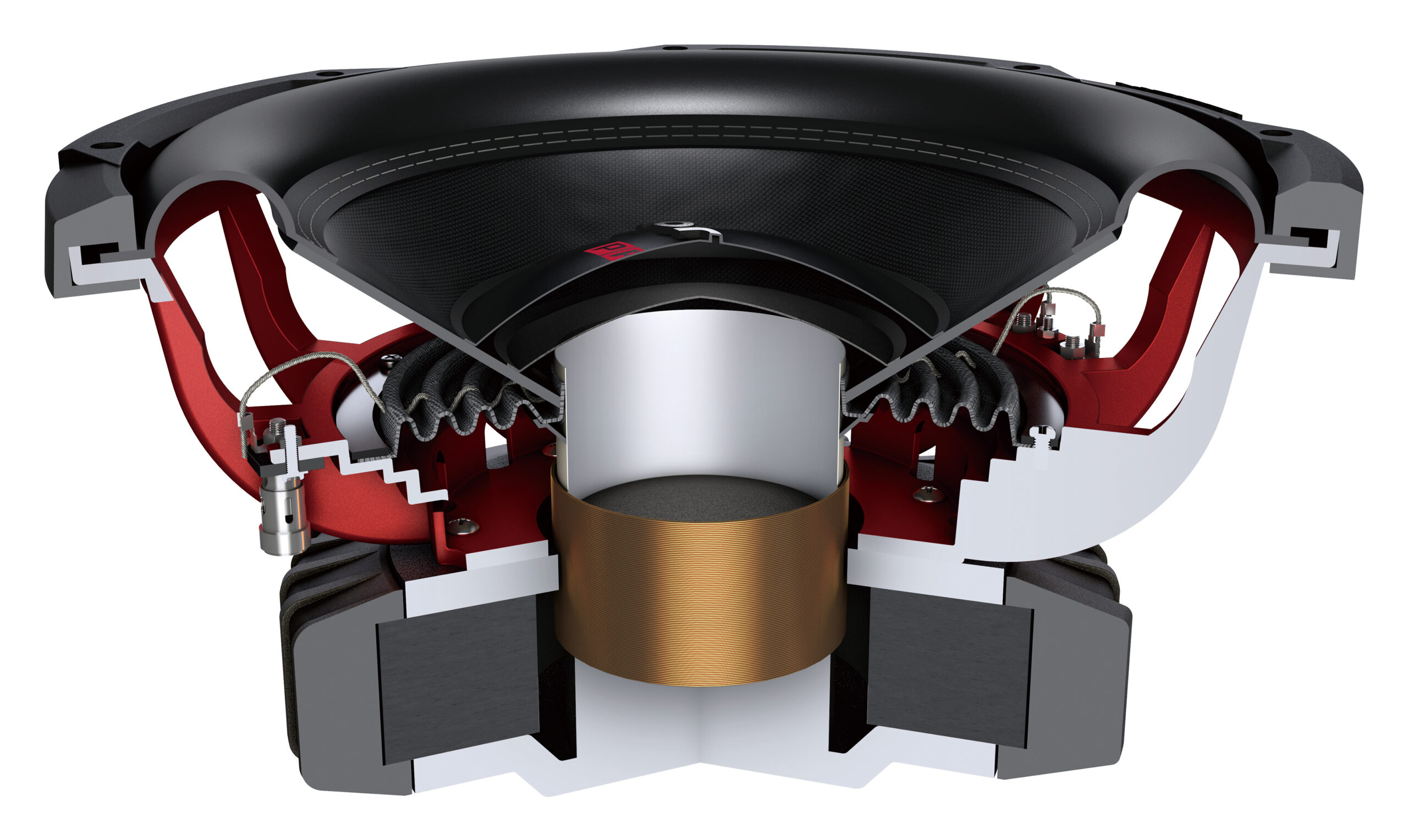

PRO Samurai series TS-W3820PRO subwoofer has a nominal power 1800 W and double coil with impedance 2 + 2 ohms. The wide stitched-reinforced urethane surround provides long cone stroke and a secure fit at high volumes. The 4-layer copper-clad aluminum voice coil allows to achieve weight reduction and high sensitivity. The high quality aluminum basket construction dissipates heat away from the voice coil. Big double magnet provides high power.

Full specifications

Samurai
PRO Pioneer Reference for Open Show
Size 30 cm
Type Subwoofer
Maximum power 3500 W
Continuous Power Output 1800 W
Frequency response 20 Hz to 200 Hz (In-Car)
Sensitivity 86 (1 W/In-car) dB
Impedance 1 Ω or 4 Ω
Dual Voice Coil (DVC)
Mounting Depth 154 mm
Woofer Cut-Out Hole Φ282 mm
Woofer material Paper
Surround Urethane
Spider Polyester Fibre
Voice Coil type 4-layer Long Copper
Voice Coil bobbin type Aluminium
Terminals Push
Magnets Ferrite
30cm / 12″
Recom. Enclosure [l] 35 (Sealed Enclosure)
50 (Ported Enclosure)
Recom. Enclosure [ft3] 1.24 (Sealed Enclosure)
1.77 (Ported Enclosure)
Weight 10.9 (Excluding accessories) kg
Dimensions Φ322 x 180 mm
Accessories Subwoofer mounting screws

Thiele/Small Parameters

Qts 1.3
Fs [Hz] 47.9 Hz
Vas [ft3] 0.29
Vas [l] 8.30
Xmax [mm] 22.8
