A New Wave.
ME-Series Marine Entertainment Combining Pioneer Sound Quality with All-Weather Durability.
Pioneer’s ME-series marine speakers are protected from the effects of sun and water exposure, meeting both IPX7 & ASTM D4329 to achieve all-weather reliability. They offer you fantastic sound, high reliability and an attractive design, by Pioneer.
Utilising a Mica reinforced IMPP(TM) monocoque cone and a rubber surround, they are constructed using advanced in-mould bonding techniques, meaning they have superior water resistance whilst maintaining high quality and a powerful sound.
Internally, a symmetrical motor design combined with high strength suspension optimises stability, linearity and clear, low distortion sound reproduction.
For the most natural sound, they also feature a lightweight Dome Type tweeter carefully positioned with a unique shaped wave guide to provide natural, clear vocals with wide dispersion. Great for fantastic sound.
Thanks to Pioneer’s original canister design, the TS-ME770TC also features a Vortex generator. When the boat is traveling at speeds of more than 100 KPH / 54 knots, regular Marine Tower speakers can cause turbulence. Pioneer’s Marine Tower speakers have what’s called a Vortex generator built into the design itself, reducing unwanted turbulence and increasing the aerodynamics, therefore improving your overall enjoyment factor.

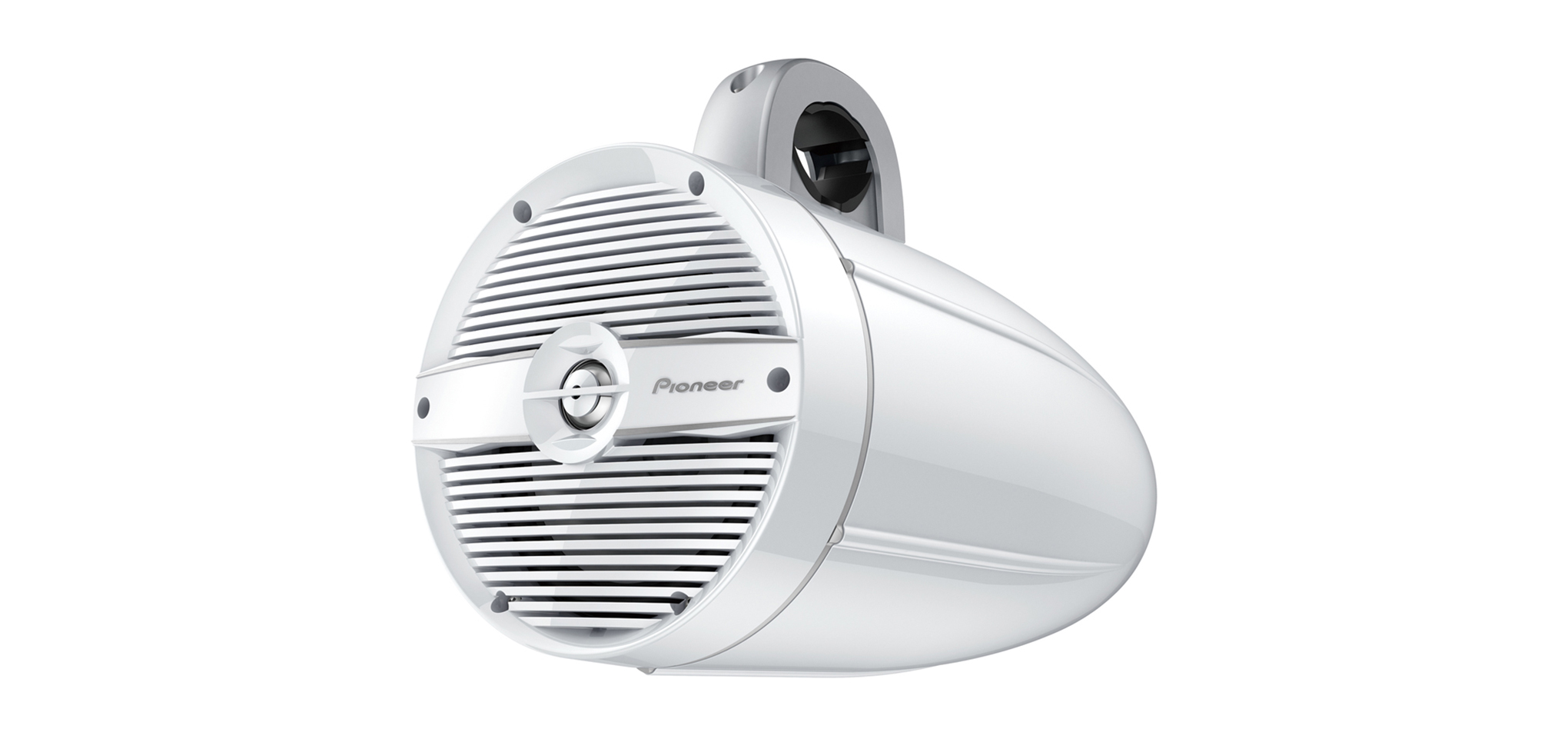

The TS-ME770TC Tower Marine speaker comes with a glossy white pearlescent classic and contemporary design, that can integrate seamlessly with flexible mounting options when connected using the UD-ME30CP Mounting Bracket, sold separately.

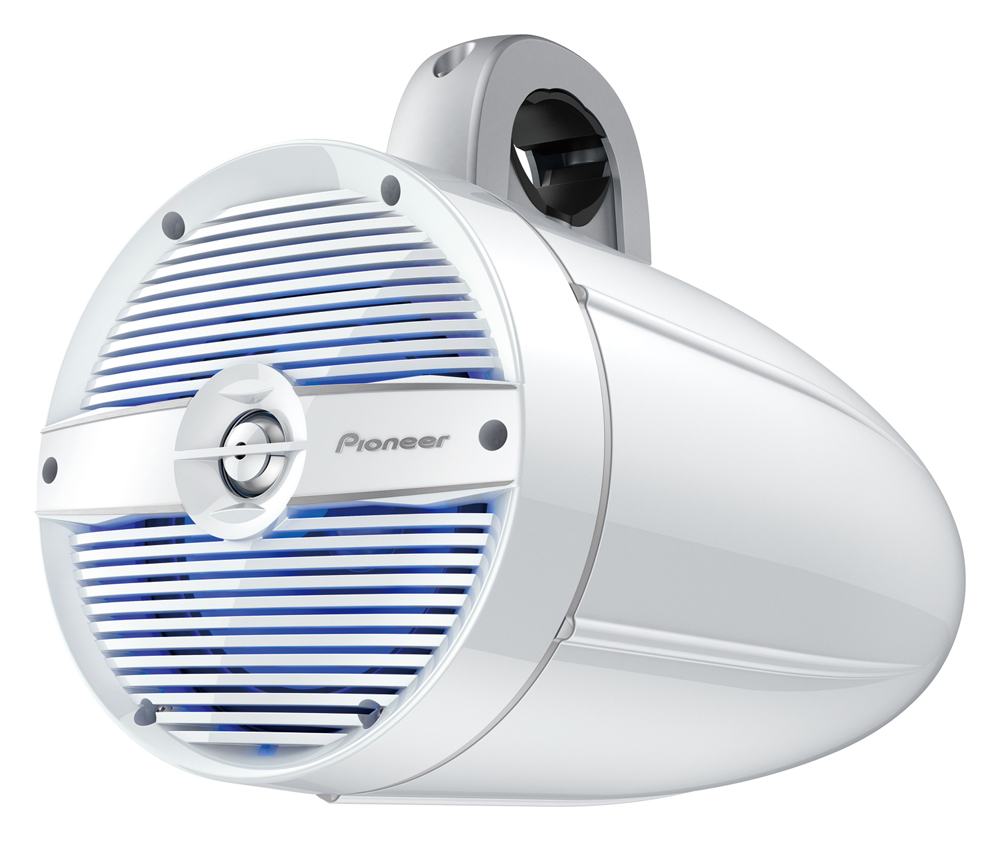

If you want to personalise and add an extra touch of colour, the TS-ME770TC included built-in RGB lighting, to illuminate the entire cone area.
Pioneer’s TS-ME770TC Tower Marine speaker is 250 W Max. / 100 W Continuous Power Handling (RMS), contain a 7.7 inch 2-Way speaker and are a perfect match with the Pioneer ME-series amplifiers and ME-series subwoofers.
Full specifications
Main Features
| IPX7 | |
| Size | 7.7 inch / 19.5cm |
| Type | 2-Way Coaxial System |
| Maximum power | 250 W |
| Continuous power output | 100 W |
| Frequency response | 42 Hz to 23 kHz |
| Sensitivity | 90 (1 W/1 m) dB |
| Impedance | 4 Ω |
| Woofer material | IMPP Composite |
| Surround | Rubber |
| Voice Coil type | Copper |
| Voice Coil bobbin type | Film |
| Magnets | Ferrite |
| Tweeter Type | Dome |
| 2-way Coaxial | Yes |
| Speaker Grill | Yes |
| Weight | 10 kg |
| Dimensions | Ø 230 x 433 mm |
| Illumination | RGB (Built-in) |
| Accessories | UD-ME30CP, sold separately |
Other
| Reliability | Waterproof IPX7, IPX6 UV ASTM D4329 |
