A New Wave.
ME-Series Marine Entertainment Combining Pioneer Sound Quality with All-Weather Durability.
Pioneer’s ME-series marine speakers are protected from the effects of sun and water exposure, meeting both IPX7 & ASTM D4329 to achieve all-weather reliability.

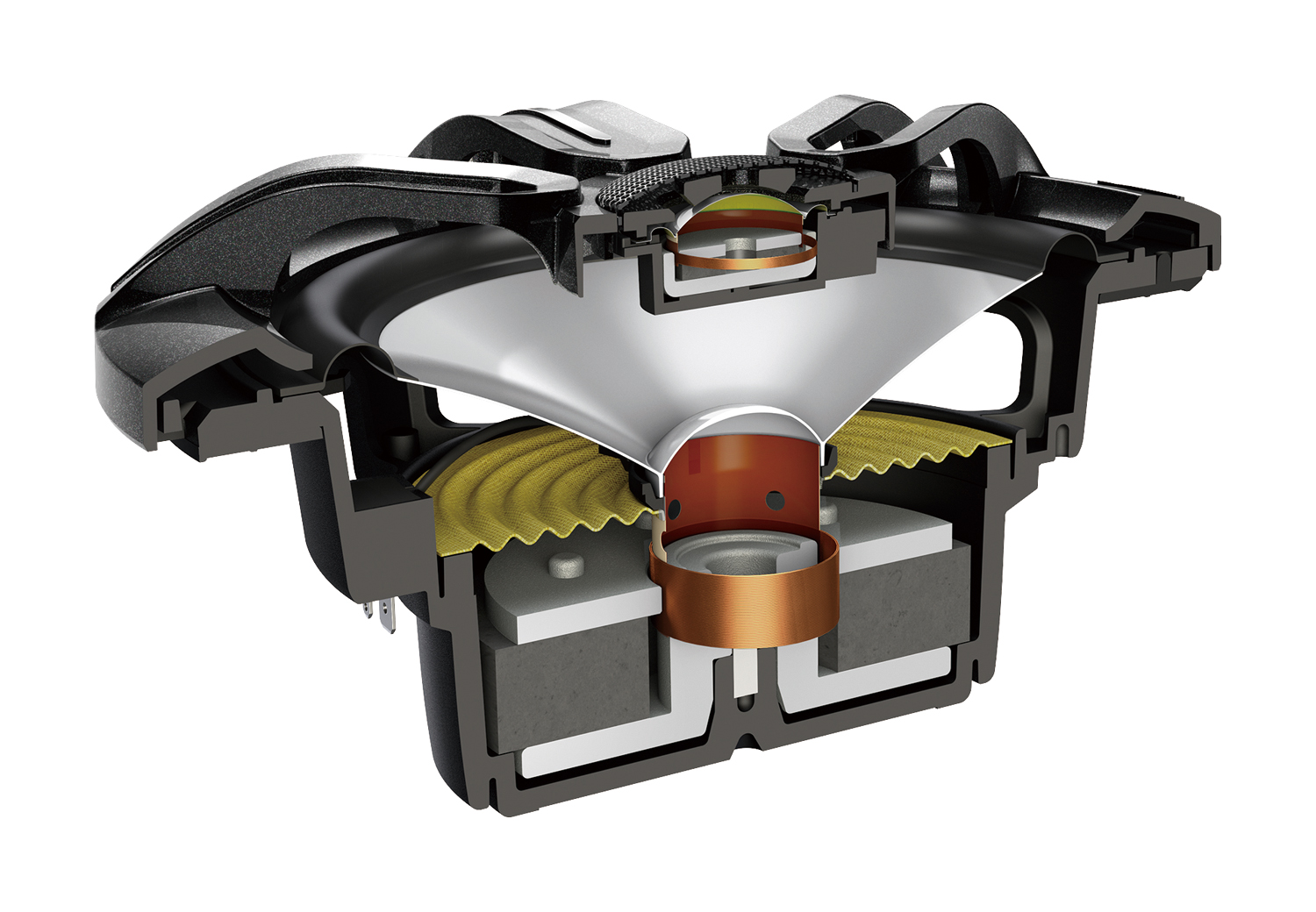

Utilising a Mica reinforced IMPP(TM) monocoque cone and a butyl rubber surround, they are constructed using advanced in-mould bonding techniques, meaning they have superior water resistance whilst maintaining high quality and a powerful sound.
Internally, a symmetrical motor design combined with high strength suspension optimises stability, linearity and clear, low distortion sound reproduction.
For the most natural sound, they also feature a lightweight polyimide (PI) tweeter diaphragm and uniquely shaped wave guide to provide natural, clear vocals with wide dispersion. Great for a really natural wide sound area.

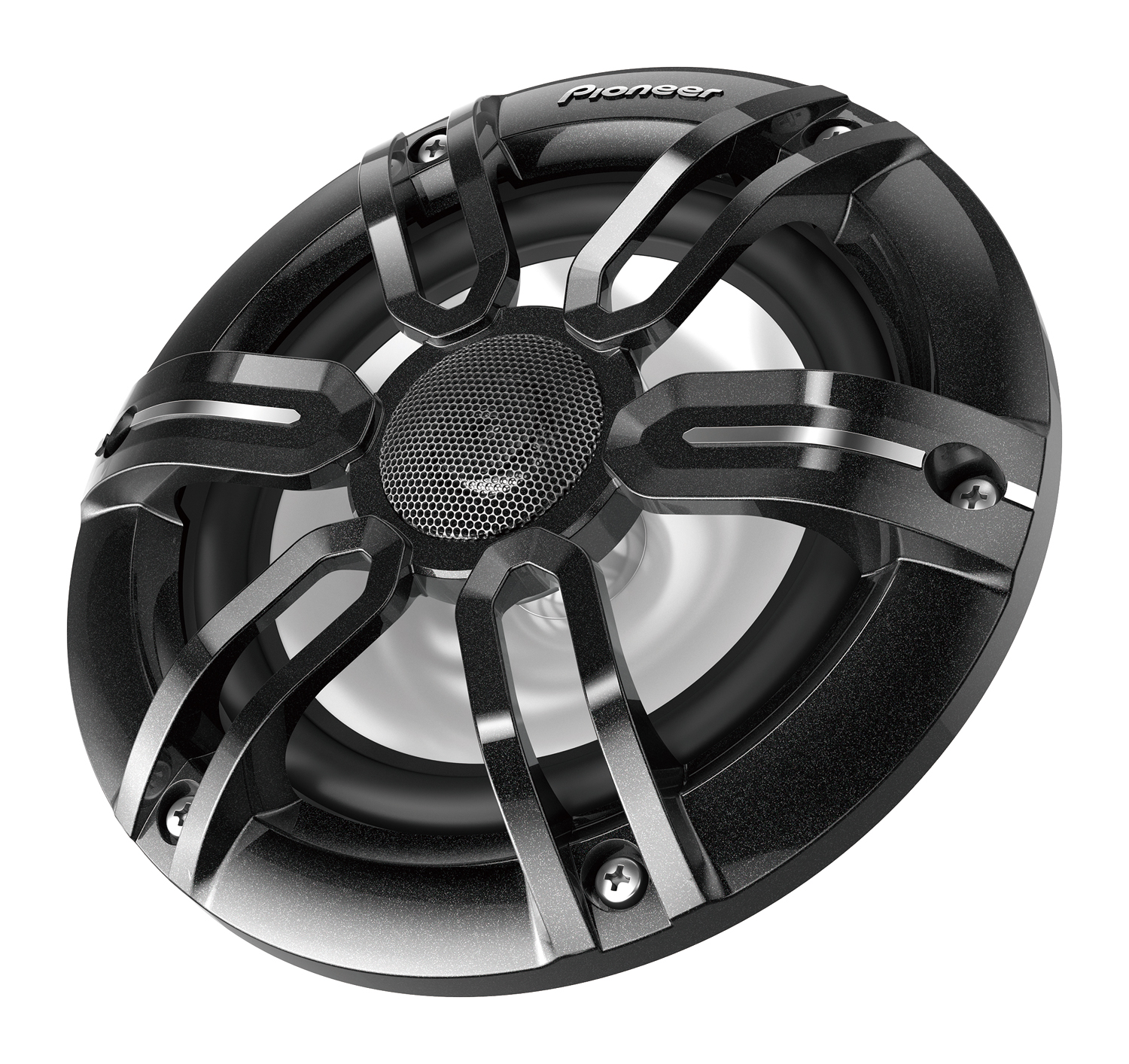

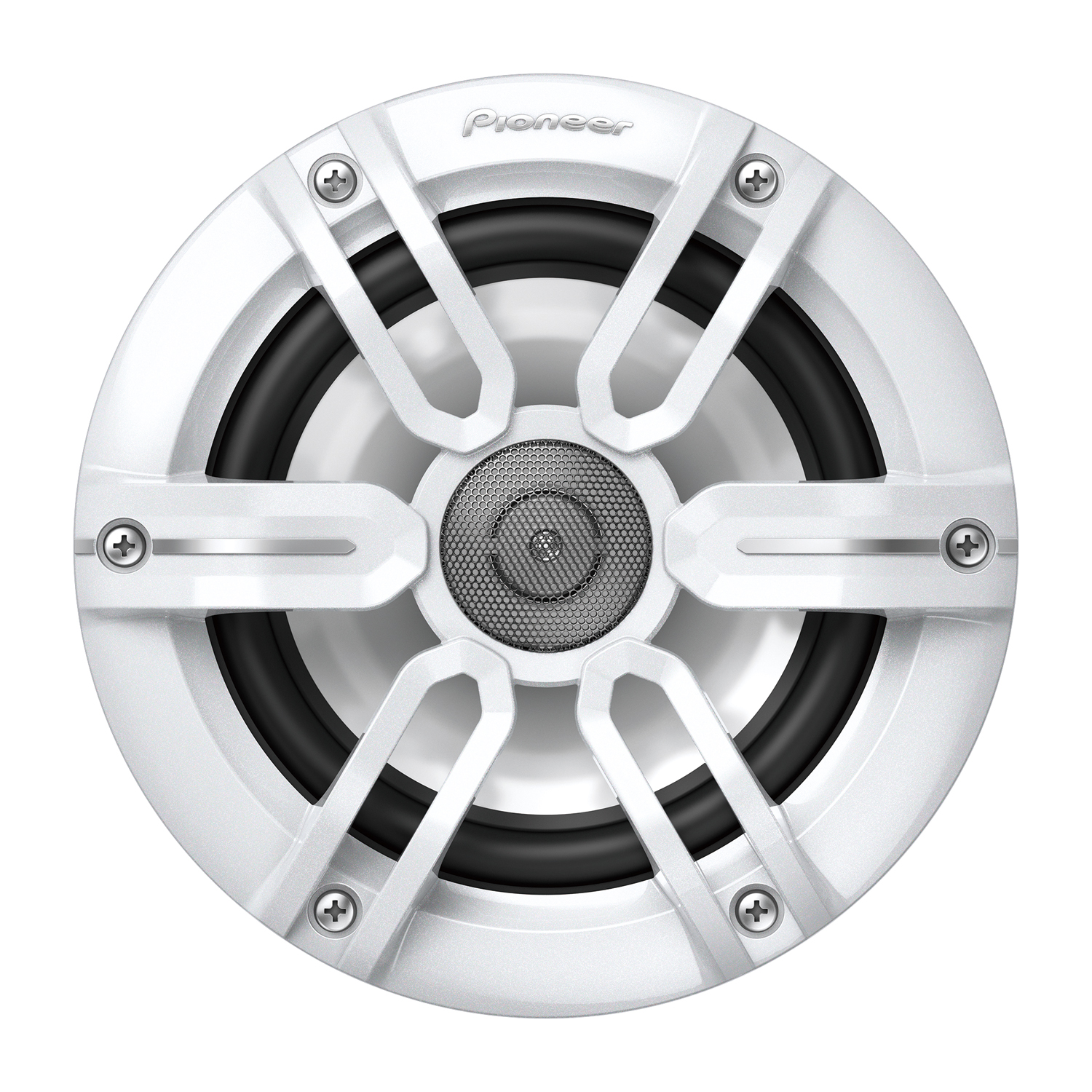

The TS-ME650FS comes with both white and black pearlescent sports grills, so you can match your cabin interior and lifestyle.
If you want to personalise and add an extra touch of colour, Pioneer created the optional UD-ME650LED RGB LED illumination light kit, sold separately, that can illuminate the colour of the woofer to any colour you like.
Pioneer’s TS-ME650FS ME-Series speakers are 250 W Max. / 75 Continuous Power Handling (RMS), and are a perfect match with the Pioneer ME-series amplifiers and ME-series subwoofers.
Full specifications
Main Features
| IPX7 | Yes |
| Size | 16.5cm |
| Type | 2-Way Coaxial System |
| Maximum power | 250 W |
| Continuous power output | 75 W |
| Frequency response | 34 Hz to 23 kHz |
| Sensitivity | 88 dB (1 W/1 m) dB |
| Impedance | 4 Ω |
| Mounting Depth | 60 mm |
| Woofer Cut-Out Hole | Φ127 mm |
| Woofer material | PP |
| Surround | Trex plane |
| Voice Coil type | Copper |
| Voice Coil bobbin type | Polyimide film |
| Terminals | FASTON Type |
| Magnets | Ferrite |
| Tweeter Type | Dome |
| 2-way Coaxial | Yes |
| Speaker Grill | Yes |
| Weight | 1.00 kg |
| Dimensions | Φ175 x 86 mm |
| Speaker Grill | White or Black included |
| Illumination | Optional UD-ME650LED. Sold Separately |
Other
| Reliability | Waterproof IPX7, IPX6 UV ASTM D4329 |
