A New Wave.
ME-Series Marine Entertainment Combining Pioneer Sound Quality with All-Weather Durability.
Pioneer’s ME-series marine subwoofers are protected from the effects of sun and water exposure, meeting both IPX7 & ASTM D4329 to achieve all-weather reliability.

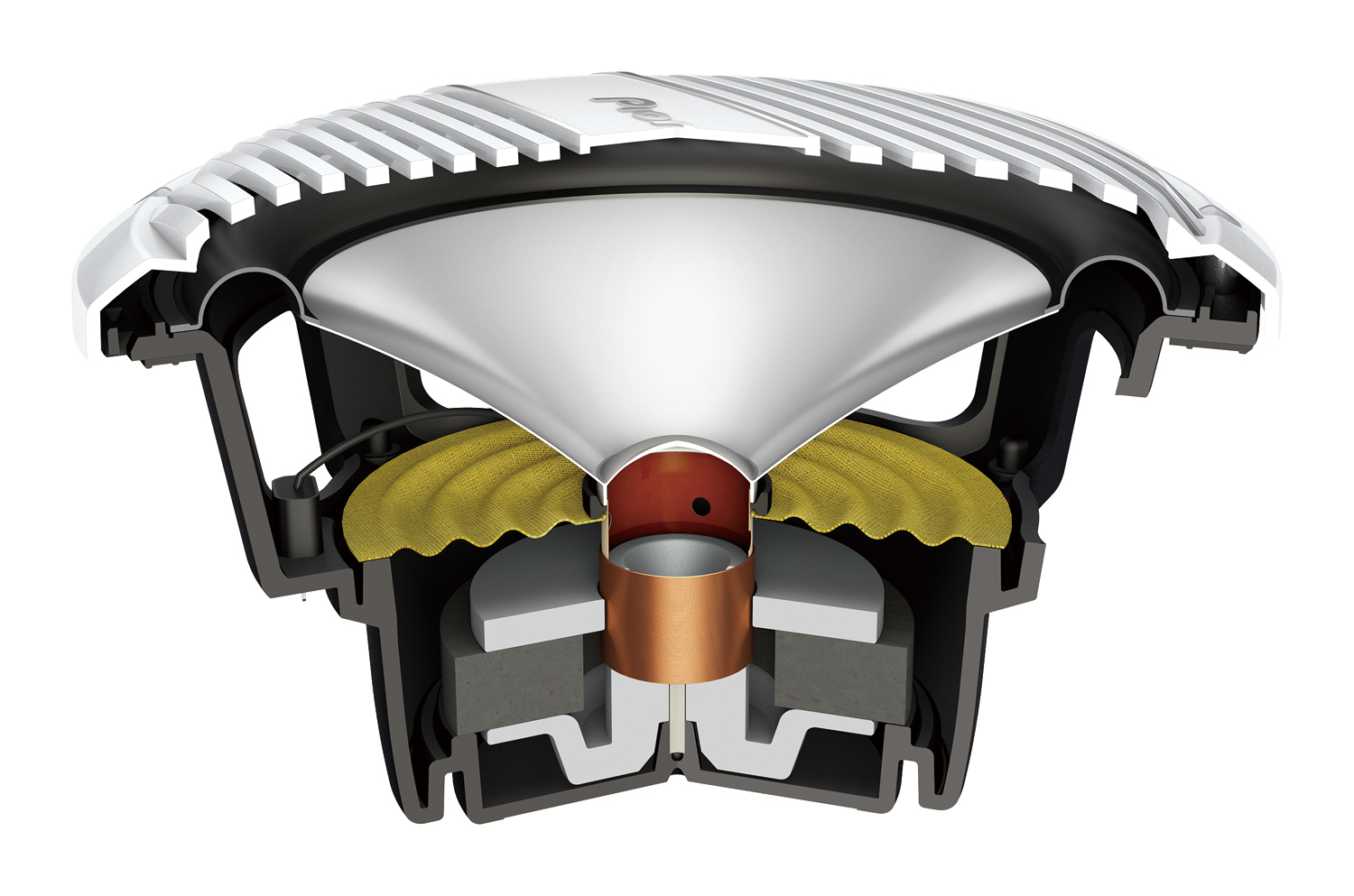

Utilising a Mica reinforced IMPP(TM) monocoque cone and a butyl rubber surround, they are constructed using advanced in-mould bonding techniques, meaning they have superior water resistance whilst maintaining high quality and a powerful sound.
Internally, a symmetrical motor design combined with high strength suspension optimises stability, linearity and clear, low distortion sound reproduction.

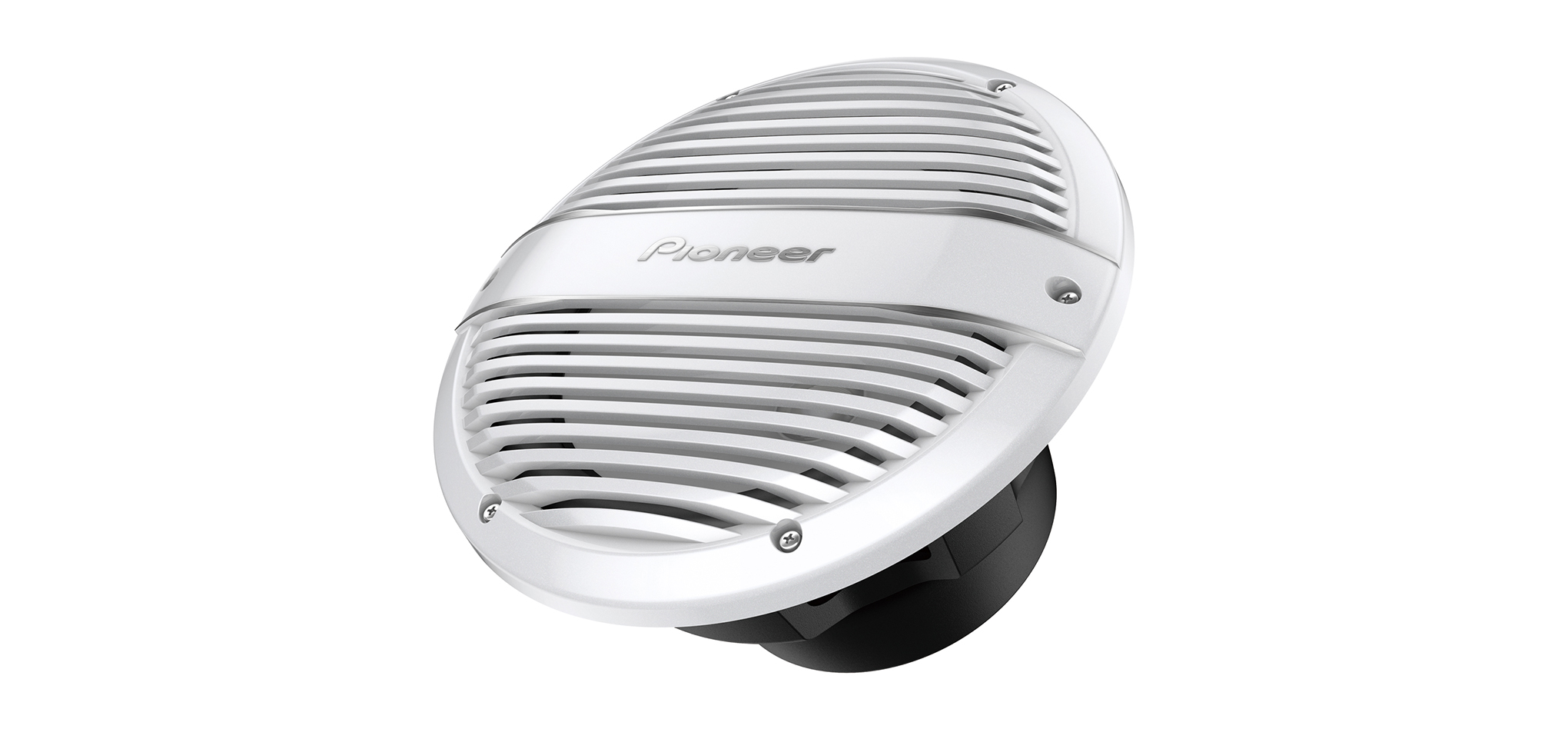

The TS-ME100WC comes with a white pearlescent classic contemporary grill, that can integrate seamlessly into any marine interior or cabin design.
If you want to personalise and add an extra touch of colour, Pioneer created the optional UD-ME100LED RGB LED illumination light kit, sold separately, that can illuminate the colour of the woofer to any colour you like.
Pioneer’s TS-ME100WC ME-Series speakers are 900 W Max. / 300 Continuous Power Handling (RMS), and are a perfect match with the Pioneer ME-series amplifiers and ME-series speakers.
Full specifications
Main Features
| IPX7 | Yes |
| Size | 25 cm / 10″ |
| Type | Free-Air |
| Maximum power | 900 W |
| Continuous power output | 300 W |
| Frequency response | 20 Hz to 3.5 kHz |
| Sensitivity | 84 dB (1 W/1 m) dB |
| Impedance | 4 Ω |
| Mounting Depth | 126 mm mm |
| Woofer Cut-Out Hole | Φ225 mm |
| Woofer material | PP |
| Surround | Trex plane |
| Voice Coil type | Copper |
| Voice Coil bobbin type | Polyimide film |
| Terminals | FASTON Type |
| Magnets | Ferrite |
| 25cm / 10″ | Yes |
| Weight | 2.81 kg |
| Dimensions | Φ273 x 165 mm |
| Illumination | Optional UD-ME100LED. Sold Separately |
Other
| Reliability | Waterproof IPX7, IPX6 UV ASTM D4329 |
