Full Digital, In-Vehicle Amplifier for Competition-Level Sound.
Under the umbrella of the Pioneer Reference Series (PRS), the PRS-D800 has been crafted using only the highest quality components to bring superior sound quality to a broader range of consumers and vehicles.
A full-range, Full Digital (Class D), bridgeable 2-channel amplifier, the PRS-D800 is unique due to its high power, high sound quality and ultra-compact size.
Main Features
| Maximum power | 600 W |
| Frequency response | 10 – 30.000 |
| Input level control | 400 mV to 6.5 V (A/B Independent) |
| Distortion | <0.004 |
| S/N ratio | >105 |
| Max. current consumption | 6.4 A / 4 Ω for two channels |
| Chassis size (W x H x D) | 255 x 50 x 104 |
| Unit weight | 1.6 |
| Continuous power output | • 125 W RMS x 2 Channels (at 14.4V, 4 Ω) • 150 W RMS x 2 Channels (at 14.4V, 2 Ω) • 300 W RMS x 1 Channel (at 14.4V, 4 Ω BRIDGE) |
| Car Amplifier Group | |
| Pioneer Reference Series (PRS) | |
| Load impedance capability | 2 Ω – 8 Ω Stereo |
| CEA 2006 Power | • 2 Channels at 14.4V, 4 Ω • 2 Channels at 14.4V, 2 Ω • 1 Channel at 14.4V, 4 Ω BRIDGE |

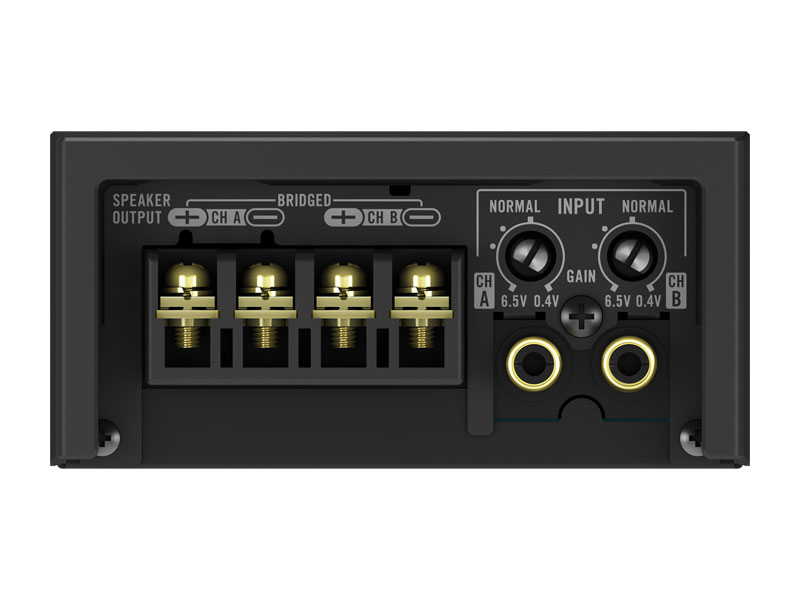

| RCA terminals | 2-Ch. (Gold-plated) |
| High Voltage Input Capability | Yes |
| Speaker Terminals | Screw-type |
| 2-channel | |
| High performance balanced isolator circuit | |
| Compact size | |
| MOSFET output section | |
| D-class |
