Configure your perfect audio setup.

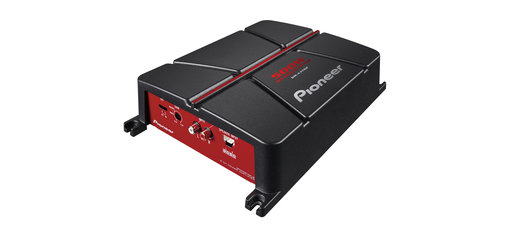

Designed to enhance your in-car audio experience, the powerful GM-A3702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for.
The GM-A3702 offers support for 2 Ohm and 4 Ohm speakers, and can produce up to 500 W of power when bridged. This product is also available as a package combined with our TS-W306R subwoofer either with cables (GXT-3706B-SET) or without cables (GXT-3706B).
Full specifications
Main Features
| Unit weight | 1.4 |
| Speaker Terminals | Screw-type |
| 2-channel | Yes |
| Maximum power | 500W (Bridged) or 2 x 170W (4 Ω) or 2 x 250 W (2 Ω) |
| CEA 2006 Power | 2 x 60W (4 Ω) |
| Continuous power output | 2 x 60W (4 Ω) or 1 x 190W (4Ω bridged) or 2 x 95 W (2 Ω) |
| Load impedance capability | 2-8 ohm allowable (Stereo) |
| Frequency response | 10Hz ~ 70kHz (+0dB , -3dB) |
| Distortion | < 0.05 % |
| S/N ratio | > 95 dB |
| LPF | 80 Hz (-12 dB/oct) |
| Chassis size (W x H x D) | 246(W) x 60(H) x 180(D) |
