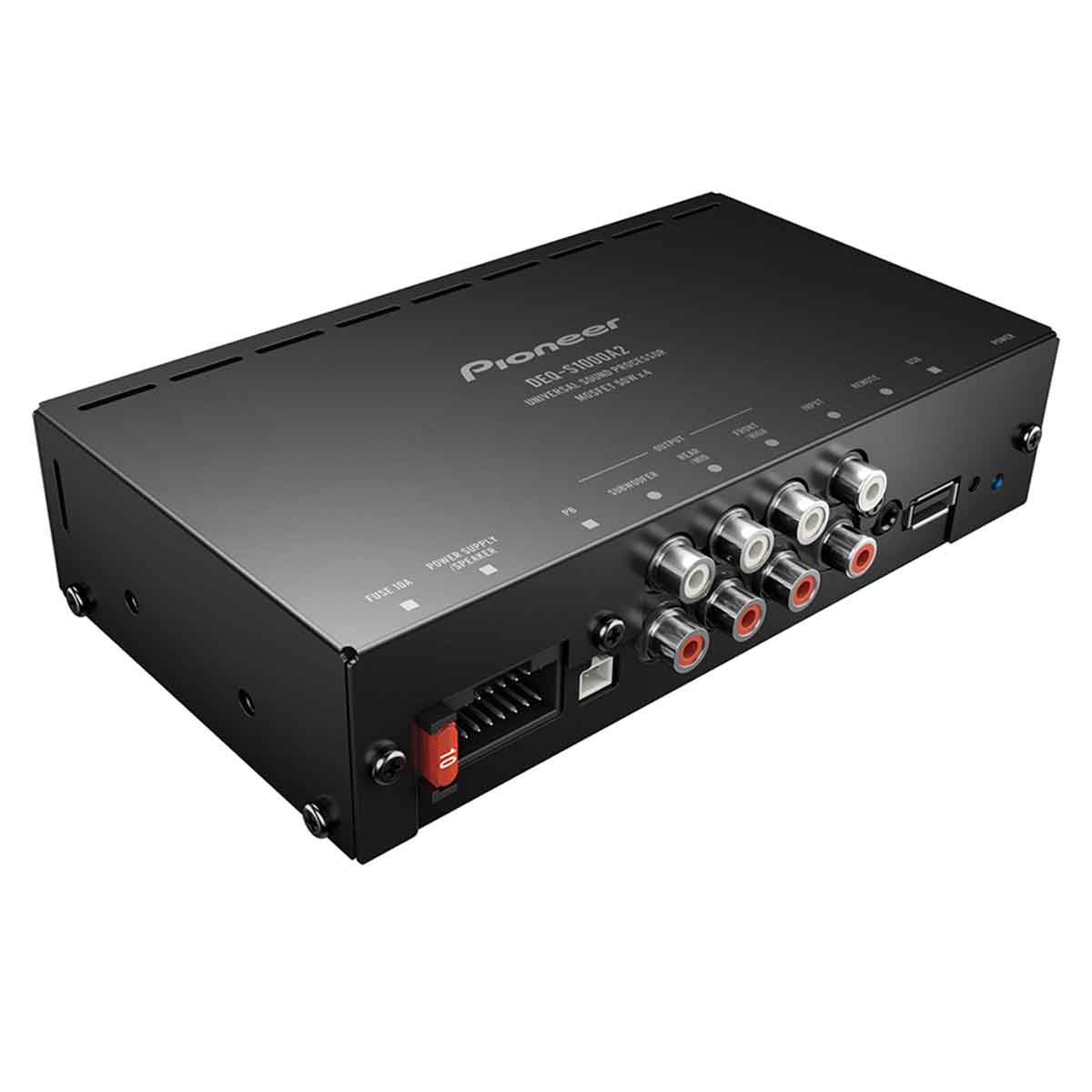

Universal Sound Processor.
The DEQ-S1000A2 is Pioneer’s Universal Sound Processor, designed for upgrading the sound quality of your factory vehicle stereo and speakers. Since the originally fitted stereo does not need to be replaced, installation* is simple. Due to it’s compact size, it can be installed out of sight, adding to a cleaner installation.
The DEQ-S1000A2 incorporates Pioneer’s full custom high performance 48-bit dual-core DSP for high quality premium sound reproduction. An internal clock and pattern are optimally tuned. Sound degradation from jitter noise is thoroughly eliminated.
When used along with Pioneer’s Sound Tune app, you can bring high end audio to the basic factory speakers. All operations are performed easily through a compatible smartphone and a wide range of settings are accessible from live simulation settings to 31-band custom equaliser settings via the Sound Tune app.
The DEQ-S1000A2 features easier connectivity thanks to the included ISO T-Harness and OTG cables for Android smartphone users.
(*Optional vehicle specific cables may be required, sold separately).
Specifications
Specifications
- Pioneer Sound Tune AppPioneer’s Sound Tune app, brings high end audio to the basic factory speakers. All operations are performed easily through a compatible smartphone and a wide range of settings are accessible from live simulation settings to 31-band custom equaliser settings via the Sound Tune app.
- Made for iPhoneWith iPhone Direct Control, you can manage your i-device directly from your car dashboard and enjoy superior sound.
- Compatible with AndroidConnect and listen to music stored on your device without the need for an app
- USB InputPlug in, charge and connect your USB connected device, to enjoy music. (no video playback)
- 13-band Graphical EQAdjust your audio output in detail for a music experience tailored to your preferences.
Main Features
| Pioneer Sound Tune App | |
| USB Input | 1 |
| Accessories | 1 Remote Control |
| Maximum power | 4 x 50 W 2 x 50 W (4Ω) for subwoofer 1 x 70 W (2Ω) for subwoofer |
| Frequency response | 10Hz to 20kHz |
| S/N ratio | 105 dB |
| Max. current consumption | 10 A |
| Chassis size (W x H x D) | 170 x 40 x 95 |
| Unit weight | 0.59 |
| Compact size | |
| RCA terminals | Yes |
| Speaker line input sensor | Yes |
Apple Compatibility
| Made for iPhone | |
| Compatible Generations | • iPhone X / iPhone 8 / iPhone 8 Plus • iPhone 7 / iPhone 7 Plus / iPhone SE • iPhone 6s / iPhone 6s Plus / iPhone 6 / iPhone 6 Plus • iPhone 5s / iPhone 5c / iPhone 5 |
| Supported Functions | • Battery charging • Music playback |
Android Compatibility
| Compatible with Android | |
| Quick Charge for Android |
Audio
| 13-band Graphical EQ | |
| MOSFET 50 W x 4 Amplifier | |
| Network Mode | 3-Way Network Mode |
| Listening Position Selector | |
| Manual TA (Time Alignment) | |
| High Pass Filter | |
| Low Pass Filter | |
| Subwoofer Control | |
| RCA Pre-Outs | 3. (Front, rear and subwoofer) |
| High Voltage Output (4Volt) | |
| Advanced Audio Features | Exclusive Designed Audio Parts. Source Calibration, (Factory Time Alignment and EQ Cancel). 31-Band Graphic EQ When Used With Pioneer Sound Tune App. Live Simulation When Used With Pioneer Sound Tune App. |
| FLAC |
Connections
| Hand Held Remote Control | Included |
