The iLX-705D is the successor of the highly popular, award winning iLX-702D Digital Media Station. This new generation includes many improvements, such as much higher screen resolution, wireless Apple CarPlay, 2 USB ports, as well as a built-in Class-D amplifier and Hi-Res Audio capabilities.
If you look for a high-performance 2DIN system for your car that includes all the latest features, cutting-edge media compatibilities and killer sound quality, the iLX-705D is for you.
Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming and much more with this amazing Head Unit.
Bring exceptionally good sound quality into your vehicle: the Alpine iLX-705D is among the world’s first Head Units featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as digital X-overs, a Parametric EQ, digital time correction and much more.
Next Generation 2DIN Digital Media Station
The iLX-705D is the official successor of the highly popular iLX-702D Digital Media Station. We further improved the product with a ton of new features, more compatibility, a HD screen and the world’s first use of a Class-D amplifier inside a Head Unit.
7-inch HD WXGA Display
The iLX-705D features the best 7” display we ever put into a 2DIN unit. The 7-inch HD touch-screen display features a resolution of 1280 x 720p (WXGA) and features stunningly vibrant colors and contrast – making icons, menus and visual content even more crisp in your dash. Especially when displaying small text or similar on navigation maps, you will welcome this high-res screen.

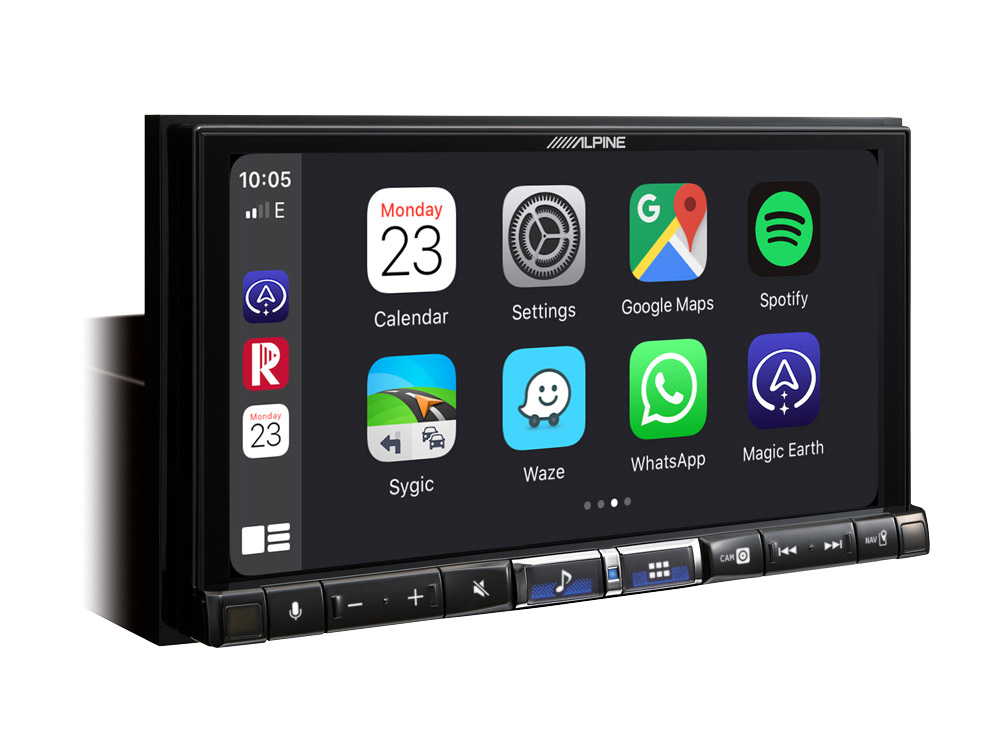

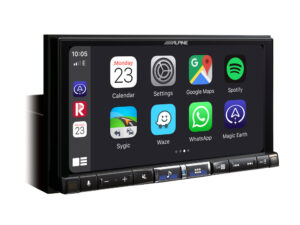

Wireless Apple CarPlay
The iLX-705D “Works with Apple CarPlay” wirelessly and lets iPhone users make and receive calls, access and write text messages, play music, and get direction in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the mic button to activate Siri voice control. Due to the WiFi connection, you can keep your iPhone in your pocket and do not need to plug it in all the time (except for charging).

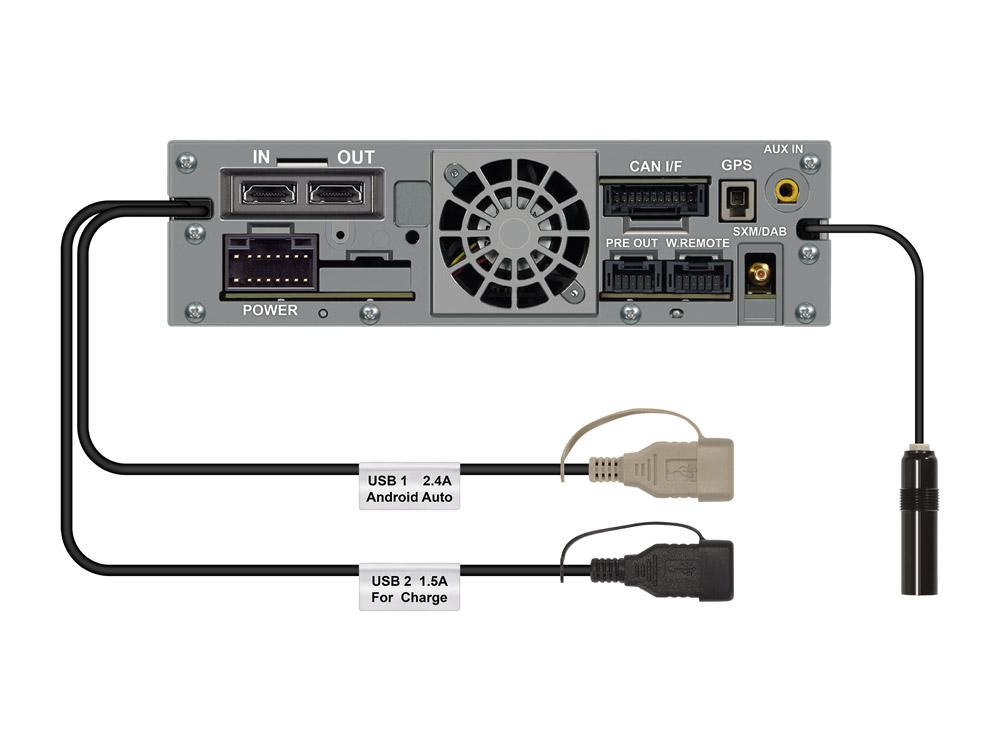

2x USB Ports
While the iLX-705D is mech-less (no built-in CD/DVD drive), you still have plenty of entertainment options. 2 USB ports located on the back of the unit allow you for example to connect one mobile device for charging, while the other USB port is used to plug in a USB stick or hard drive to access audio and video files.

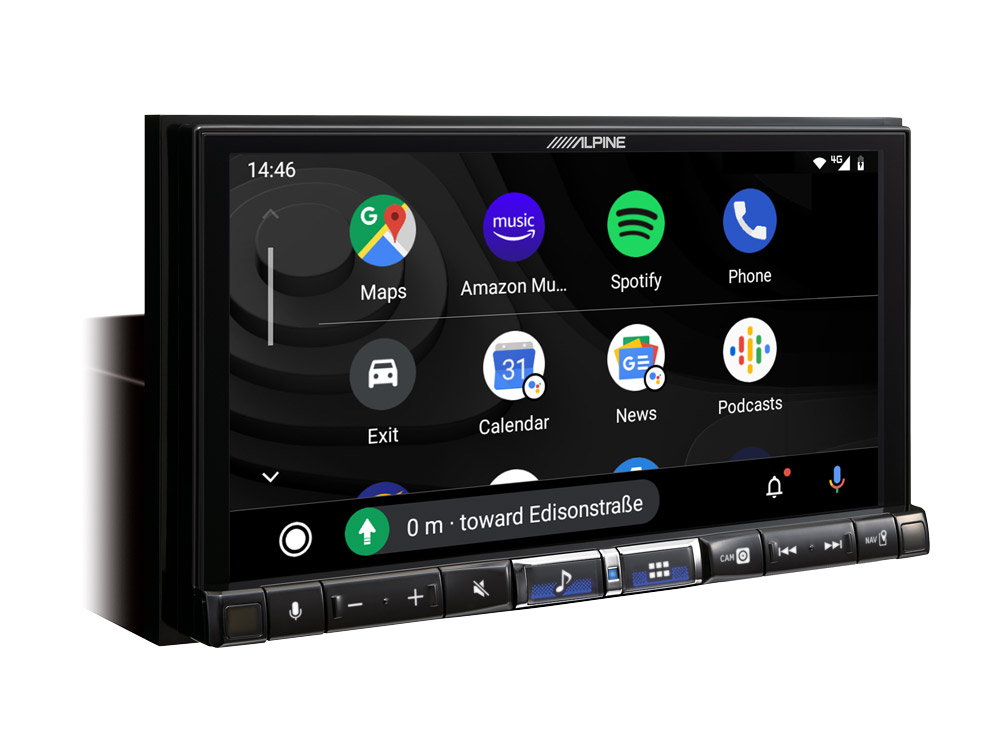

Android Auto Compatibility
Android Auto allows you to use hundreds of useful smartphone apps with your Alpine system (wired connection). There are many popular navigation apps available, such as Google maps, Sygic, Waze, Magic Earth – just to name a few. Enjoy music streaming with Amazon Music, Spotify, Deezer and others and stay connected with WhatsApp and other popular messenger apps – right from your Alpine screen.
World’s First Head Unit With Built-in Class-D Amplifier
The iLX-705D is next to the new Alpine Halo11 and Halo9 the world’s first aftermarket Head Unit featuring a built-in 4x 50 Watts Class-D amplifier – allowing excellent, high-end sound reproduction with highly reduced noise or phase shift. The key benefit of Class-D amplification technology is its high efficiency of about 90%, compared to 50 – 70% of Class AB amplifiers. New high-speed fans with internal heat sinks keep your Alpine car stereo cool – and the music playing.

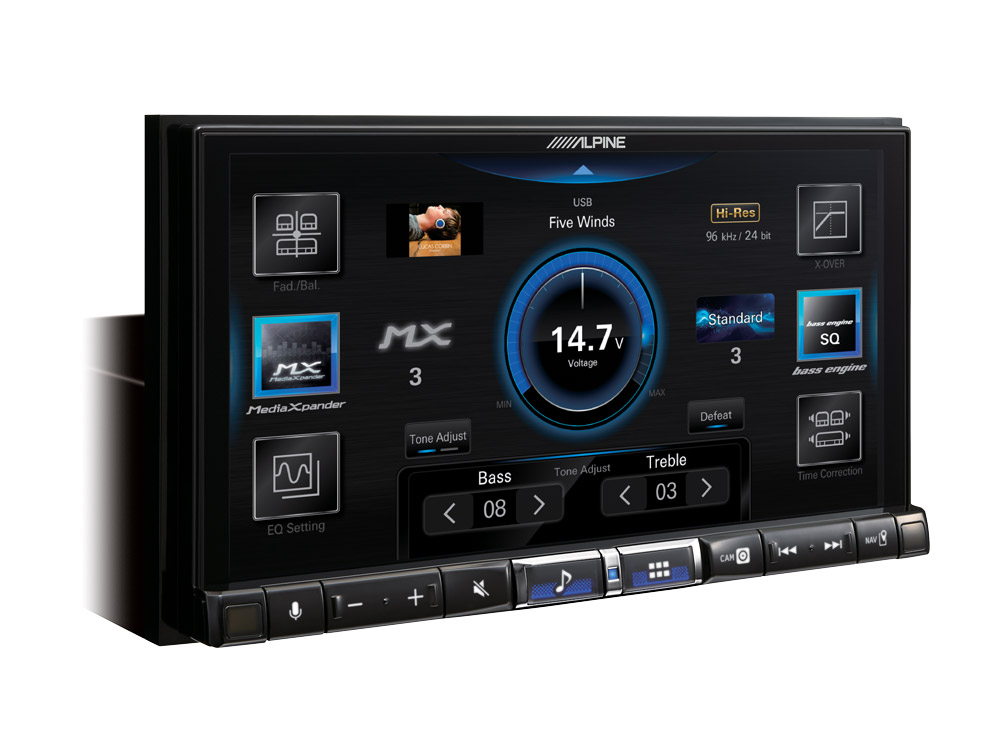

Enjoy Excellent Sound Quality
Featuring a 56-band Parametric EQ in the advanced mode, a 2-way digital X-over, 6-channel digital time correction and several Bass Engine SQ and MediaXpander sound tuning options, you have excellent tools at your disposal to tune your iLX-705D and the attached amp / speaker system to perfection. But we didn’t stop there: The iLX-705D is Hi-Res Audio certified and can decode and playback Hi-Res Audio files up to 96kHz / 1.536 kbps from USB sources in uncompressed supported formats such as FLAC, WAV and APE.

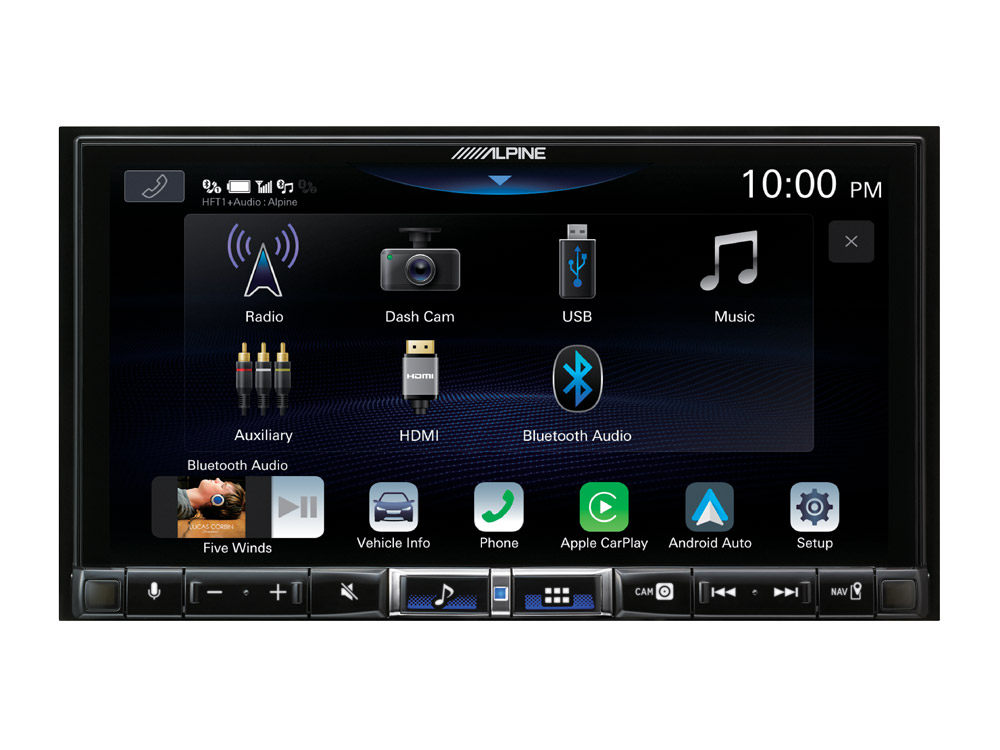

Wide Entertainment Options
The all new DAB/ radio tuner allows DAB – FM switching and lets you enjoy seamless radio reception without interruptions. Next the increased USB video playback formats (MP4, MOV, FLV, MKV), the iLX-705D features many additional entertainment options: the built-in Bluetooth module allows audio streaming from your phone and the HDMI input enables the connection of an external video playback device.
Vehicle Data-bus Connection
If your car is equipped with parking sensors and, you can continue to use these convenient functions with your iLX-705D. Alpine offers many vehicle data-bus interfaces to connect your Alpine to your vehicle’s data-bus system. This enables compatibility with your vehicle’s steering wheel control buttons, display of air conditioning settings as well parking sensor display.
Drive-Assist Cameras
A rear view camera is a great way to make reversing safer. The camera image automatically comes on when you shift into reverse and distance guides that can be adjusted to match your car size will appear on the screen to help you safely park your car. Alpine offers a wide variety of front and rear facing cameras, including multi-view cameras with selectable viewing angles. You can even view the camera screen and parking sensor screen simultaneously, if your car supports it.
Wireless Control Knob
The separately available RUE-BK01 control knob is actually designed for the 2022 Halo series, but also works with the iLX-705D (requires a custom installation in the center console or dashboard). Turning the knob will adjust the head unit’s volume output, while pushing it activates the rear view camera on the screen.
Note: this control knob has no function if wireless Apple CarPlay is active.
TIDAL Hi-Res Audio App
With the integrated TIDAL app you can access the High-Res Audio streaming experience with TIDAL, enjoying its catalog of over 90 million songs and 450,000 videos. TIDAL HiFi and HiFi Plus members get lossless audio and high-fidelity music options for superior sound quality that elevates the music experience. TIDAL Masters, delivered in partnership with Master Quality Authenticated (MQA), allows HiFi Plus Members to listen to music exactly as the artist intended the track to sound. With thousands of expertly curated playlists customers will be able to listen to all genres and discover new artists via TIDAL Rising.
FEATURES

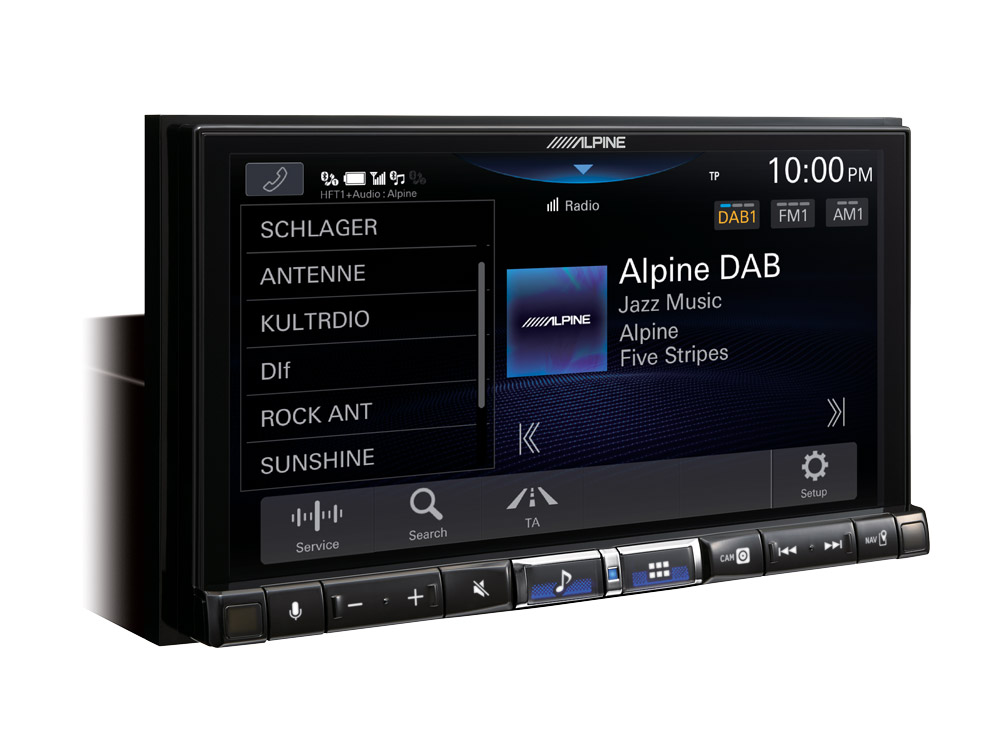

Radio / DAB Tuner
- Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
- Memory: Auto Memory
- Seek Mode: Local, DX, Pre-Set, Service
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function

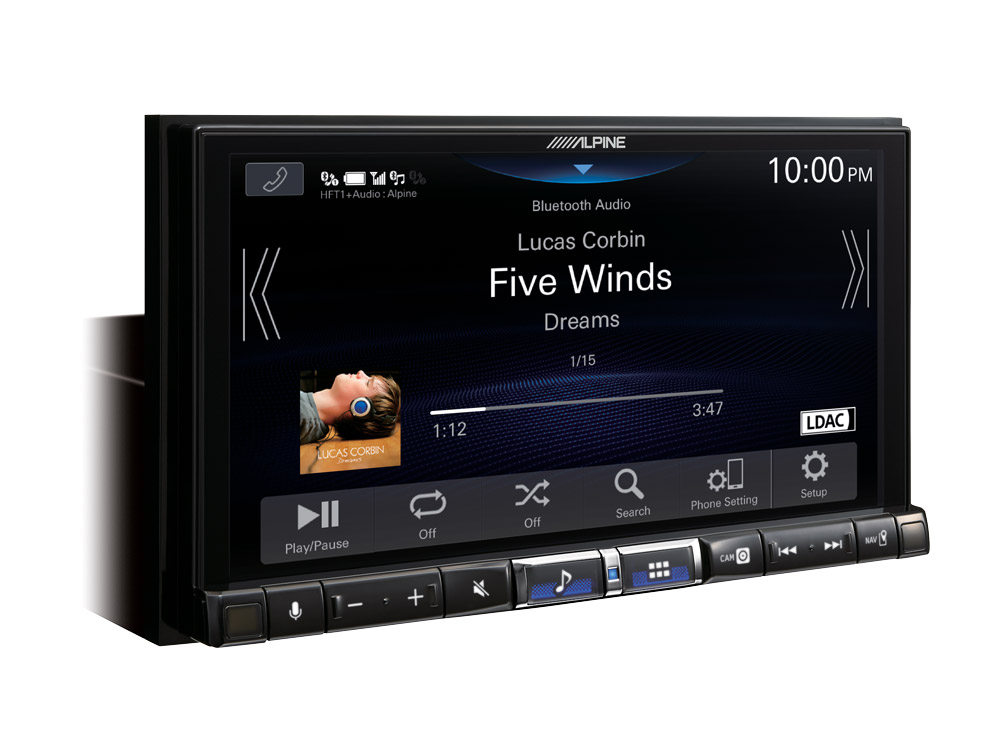

BLUETOOTH®
- Built-in BLUETOOTH® Module V4.2
- HFP (Hands-Free Profile) Compatible
- A2DP (Advanced Audio Distribution Profile) Compatible
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Phone Book Synchronization
- Speed Dial: 4 Preset Memory (per phone)
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Redial Function
- Speech Volume Level Adjustment: (Outgoing and Incoming)
- 24 Menu Languages
- Microphone Included
Works with iPhone®
- Compatible with iPhones featuring a lightning connector
- Various search functions and Album Artwork Display
- Battery Charging
Connectivity
- Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)
- Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
- Dash-Cam Link for DVR-C320S to allow playback and control of your dash-cam

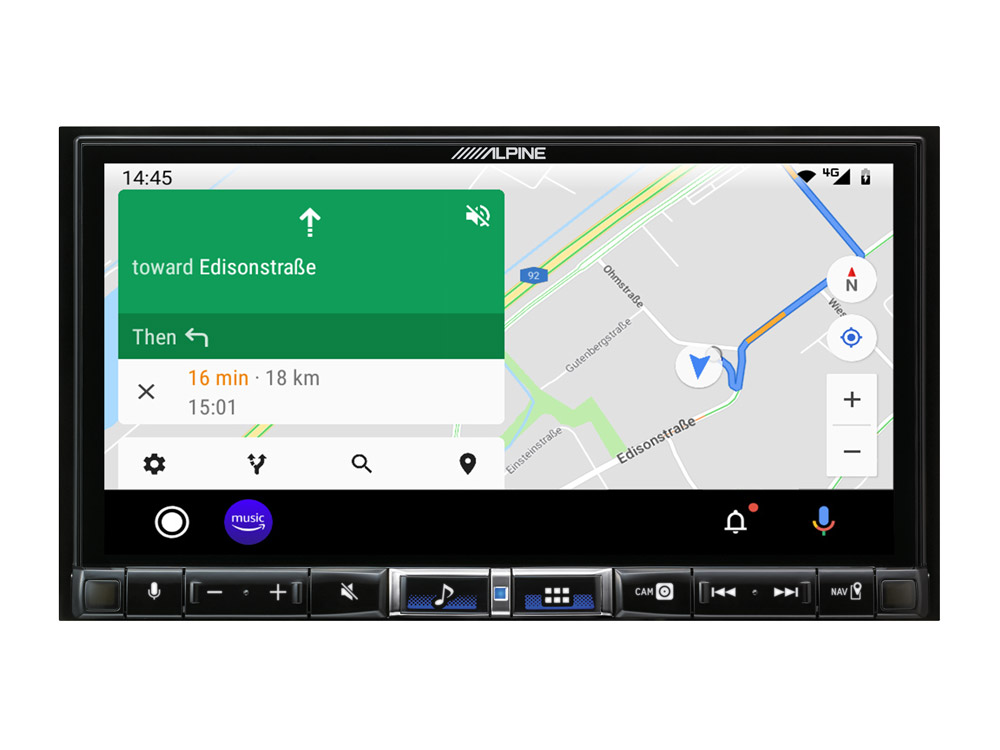

Navigation Function

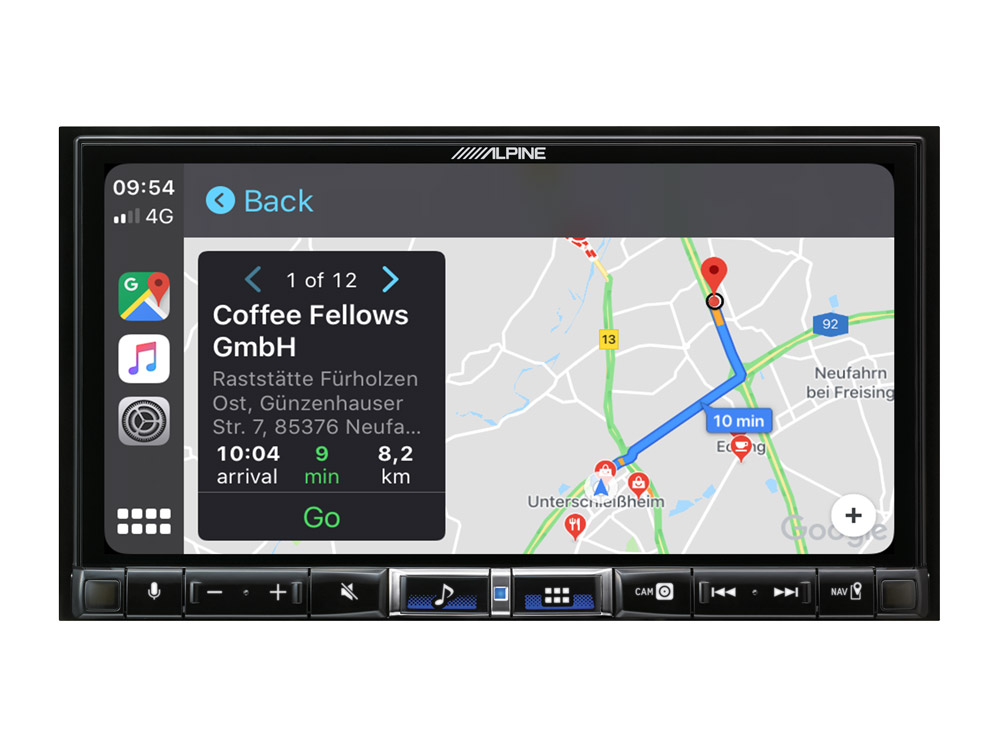

- Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
- Includes GPS enabled navigation antenna
USB Media Connection
- 2x USB cable included
- USB port 1: data port / USB port 2: charging port
- Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
- Video Playback: MP4, MOV, FLV, MKV compatible
- Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
- Various search functions included
Sound Tuning
- Bass Engine SQ and Bass Engine PRO sound tuning
- Subwoofer Level Adjustment
- 6 V PreOut
- 10 Equalizer PreSets
- 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
- 6-Channel Digital Time Correction
- 2-way Digital Crossover
- Independent Source Volume Level Setting
- For detailed sound tuning options please see the owner’s manual PDF below in the “SUPPORT” section
General
- 4x 50 Watts Class-D High Power Amplifier
- 7-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
- Display angle adjustable after installation
- 3 PreOuts (6 V, Front / Rear / Subwoofer)
- 1 A/V AUX Input (3.5 mm micro jack)
- 1 HDMI input / 1 HDMI output
- 2 USB Ports (1x USB data port / 1x USB charging)
- Steering Wheel Remote Control Ready
- Vehicle Display Interface Ready (UART connection)
- Remote Control Ready
- 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
- Camera Distance Guides (adjustable)
- Live Contrast Adjustment
- Menu Language: 24 Languages
- Auto Dimmer
- Anti-theft security code
- Engine Start-Stop unaffected
Installation

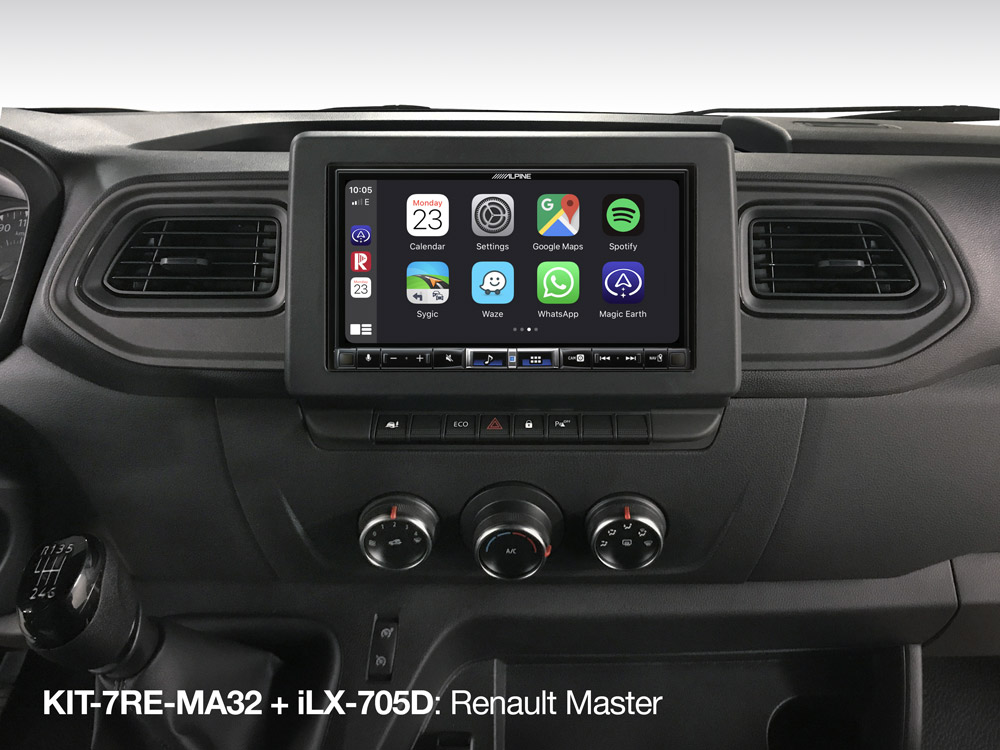

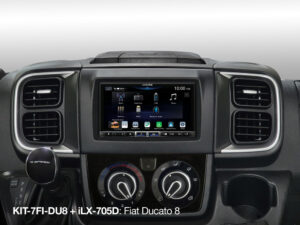

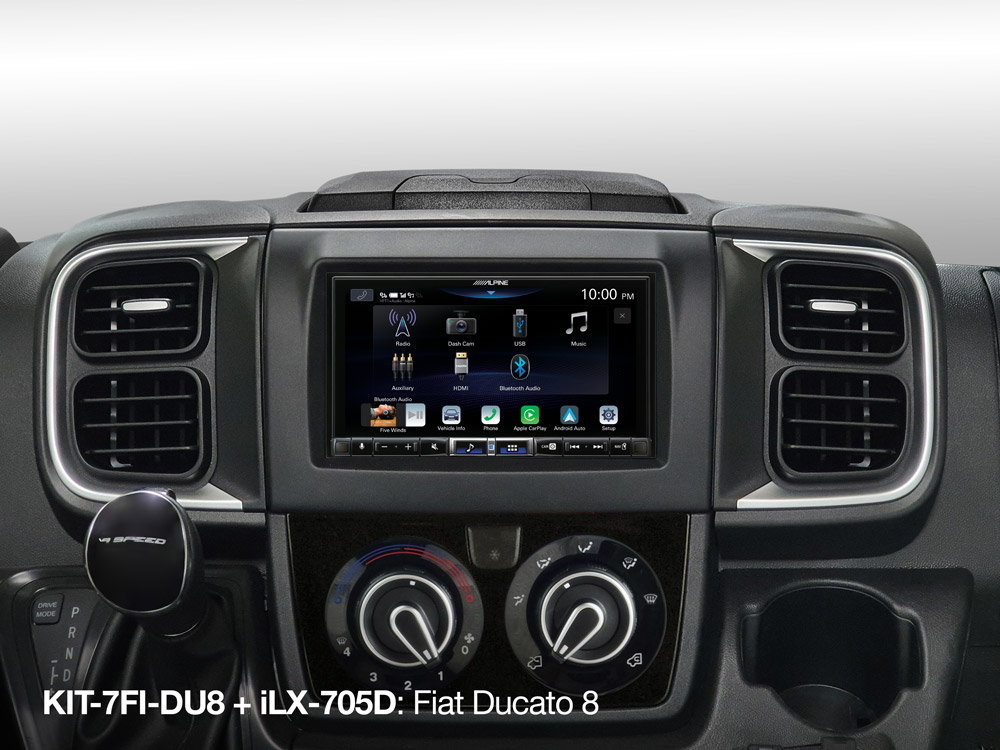

- Various vehicle specific installation kits available
SPECIFICATIONS
Screen
- Screen Size: 7-inch Capacitive WXGA
- Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
Max Power Output Ratings
- Max Power Output: 4x 50 W
Radio / DAB Tuner
- FM Tuning Range: 87.5 – 108.0 MHz
- AM Tuning Range: 531 – 1,602 kHz
- DAB band III: 174 – 240 MHz
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB / 90 dB
- DAB audio format: DAB/MPEG 2, DAB+/AAC, DMB Profile 1/BSAC/DMB profile 2/AAC
WiFi
- Reception Frequency: IEEE 802.11 B/g/n (2.4 GHz)
- Channels: 1 – 13 ch (2.4 GHz)
- Security Protocols: WPA3/WPA2-PSK (TKIP, AES)
USB
- USB Requirements: USB 2.0
- USB 1: data port / 2,400 mA (Mass Storage Class)
- USB 2: charging port / 1,500 mA (CDP support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT16 / FAT32 / exFAT
- FLAC, MP3, WMA, AAC, WAV, APE Decoding
- Video Playback: MP4, MOV, FLV, MKV compatible
- Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 – 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1 kHz): 0.005%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 95 dB
GPS
- GPS compatible navigation antenna included
- GPS frequency: 1575.42 +/- 1.023 MHz
- Reception sensitivity (search): – 136 dB max
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V4.2
- Output Power: +4 dBm Max. (Power class 2)
- HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
- Supports LDAC Audio Codec
Sound Tuning
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- BASS ENGINE SQ: 5 Modes, Level 0 to +6
- For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section
HDMI Section
- Input Format 720p / 480p / VGA
General
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 6 V / 10k ohms

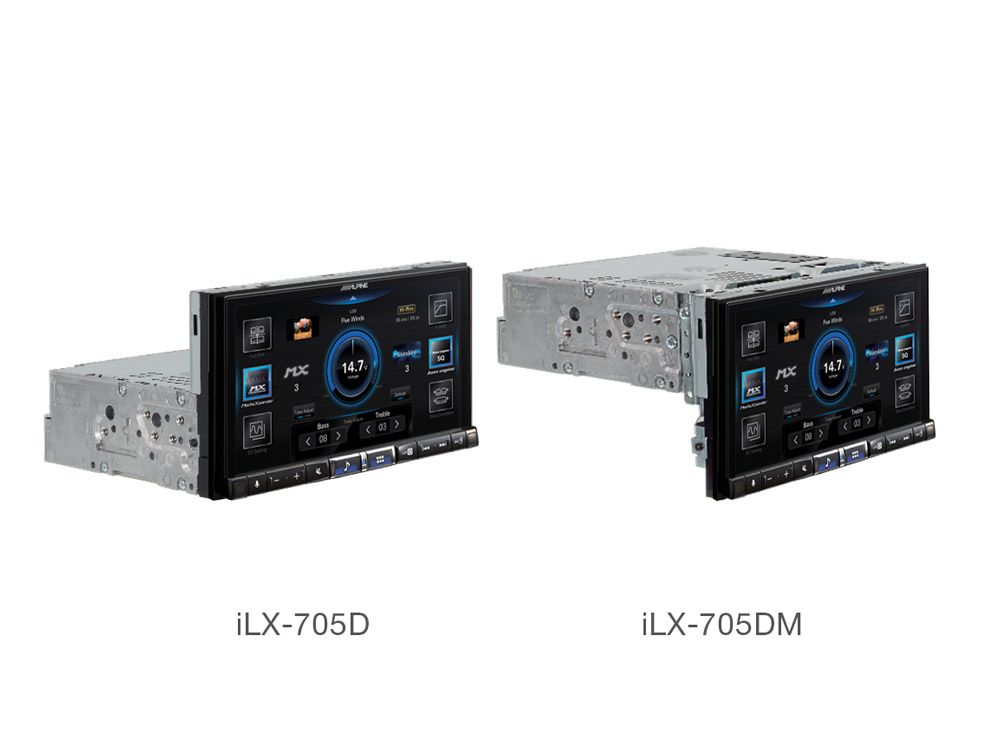

Dimensions
- Weight: 1.4 kg
- Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
- Display Size (W x H x D) mm: 171 x 96 x 18 mm
