The ES 130 K kit offers great linearity, deep bass and an impressive SPL of 90.8 dB (2.83 V/1 m) in an extremely compact design.

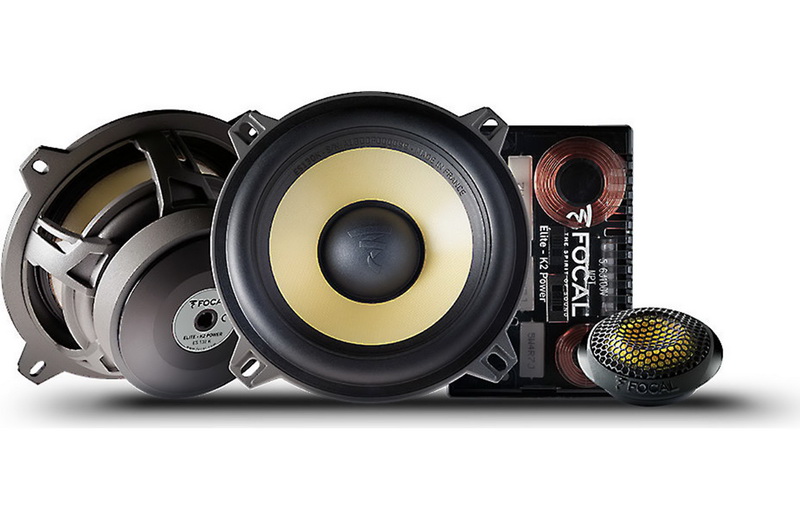

This kit is composed of:

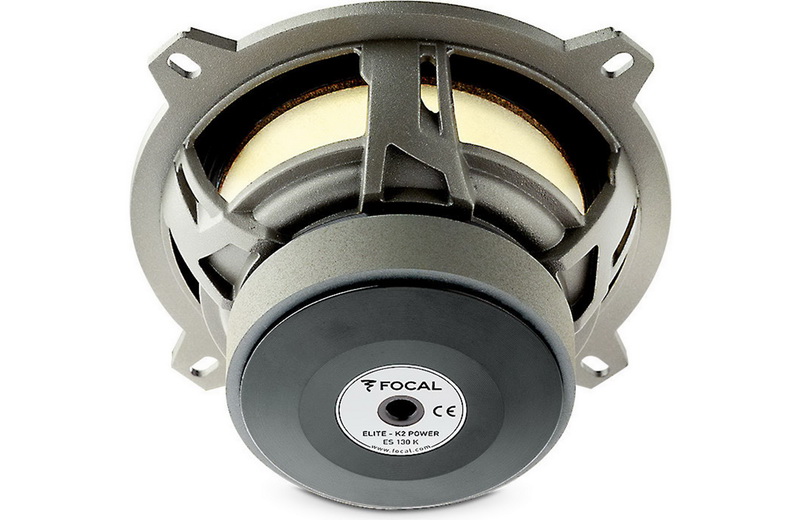

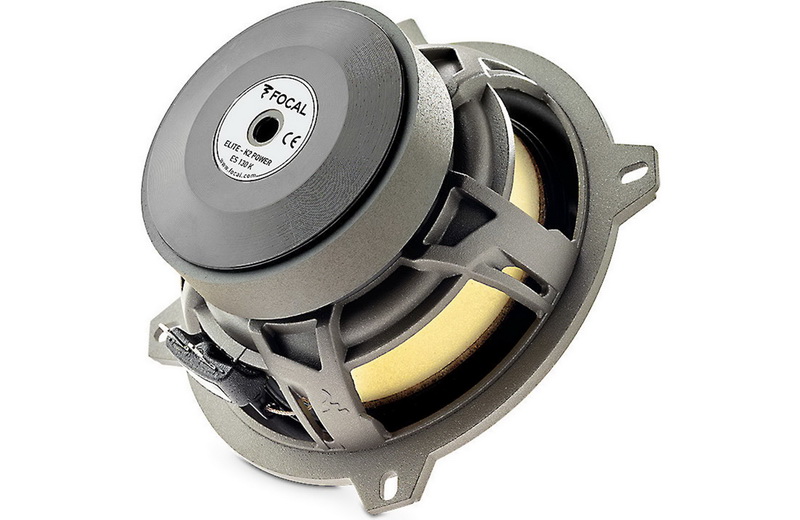

Two 5″ (130mm) woofers featuring K2 Power Kevlar® cones endowed with the ideal qualities: lightness, rigidity and excellent damping. These speaker drivers deliver an extremely dynamic sound with perfect definition. The cones are fixed to the frame using TMD suspension, whose exclusive design removes unwanted resonances and reduces the effects of distortion.
Two 025/32” (20mm) aramid-fibre TKM inverted dome tweeters. Their exclusive ‘M’- shaped profile is designed to control deformation of the dome, and to perfectly reproduce high frequencies up to 22kHz smoothly and with precision. Their compact crossovers are quick to install and easy to set up. Various accessories are supplied for assembling the tweeters, which can be installed in the factory locations, on tilting frames or flush-mounted.
The kit is supplied with aluminum and mesh grilles.
The speaker drivers used for the K2Power have been completely redesigned. Each component is the result of extensive research in acoustics to push back the limits of performance, of power and of precision! The K2Power Kevlar® cone, a product of unique expertise Made In Focal, is to this day second to none. Composed of an ultra-light foam structure sandwiched between a thin layer of Kevlar® aramid fibres, and a layer of glass fibres, the K2Power cone combines three key factors of quality acoustics:
- Rigidity
- Lightness
- Damping, for precise and dynamic sound.
TMD SUSPENSION / SAY GOODBYE TO DISTORTION
The new K2 Power TKM tweeter features an exclusive “M”-shaped structure. This new-generation aramid-fibre inverted dome tweeter provides great precision in the very high end, and its combination with a “push-pull” motor with IAL2 technology extends the low end of the frequency response and provides extraordinary harmonic balance.
The new K2 Power TKM tweeter features an exclusive “M”-shaped structure. This new-generation aramid-fibre inverted dome tweeter provides great precision in the very high end, and its combination with a “push-pull” motor with IAL2 technology extends the low end of the frequency response and provides extraordinary harmonic balance.
The new Radial VC cooling system for speaker driver voice coils expels hot air from the voice coil towards the bottom of the magnet through 6 holes. This improves control over the voice coil temperature, limiting the effects of thermal compression and improving reliability. This significantly increases the efficiency of the speaker driver. It also improves dynamics and produces a more powerful sound
Progressive spider profile / IMPROVED LINEARITY AND PRECISION
The progressive spider profile of K2 Power speaker drivers is designed to provide a full-bodied sound at low levels and to increase linearity, precision and dynamic range
For improved reliability / AN OPTIMISED CROSSOVER
The components used for the new K2 Power crossovers were selected specifically and optimised in order to improve control over the effects of heat dissipation. These components, which are fundamental to managing the various channels and for the soundstage, are now even more reliable.
Designed and Made in France
WHAT MAKES THE DIFFERENCE
- Inverted dome “M”-shaped tweeter
- High linearity
- High SPL (for the size)
SPECIFICATIONS
- 2-way component kit
- Diameter: 5″ (130mm)
- Voice coil diameter: 1″ (25mm)
- Voice coil height: 01/2″ (12mm)
- Motor: Magnet
- Tweeter: TKM (“M” profile aramid fiber inverted dome)
- Cone: Composite K2 Power “W” sandwich cone
- Surround: Tuned Mass Damper (TMD®)
- Separated crossover: 6-12/12dB (3.5kHz)
- Tweeter Adjustable level: +3; 0; -3dB/oct
- Max. power: 160W
- Nom. power: 80W RMS
- Sensitivity (2.83V/1m): 90dB
- Frequency response: 65Hz- 22kHz
- Impedance: 4 Ω
- Accessories: Supplied grilles
