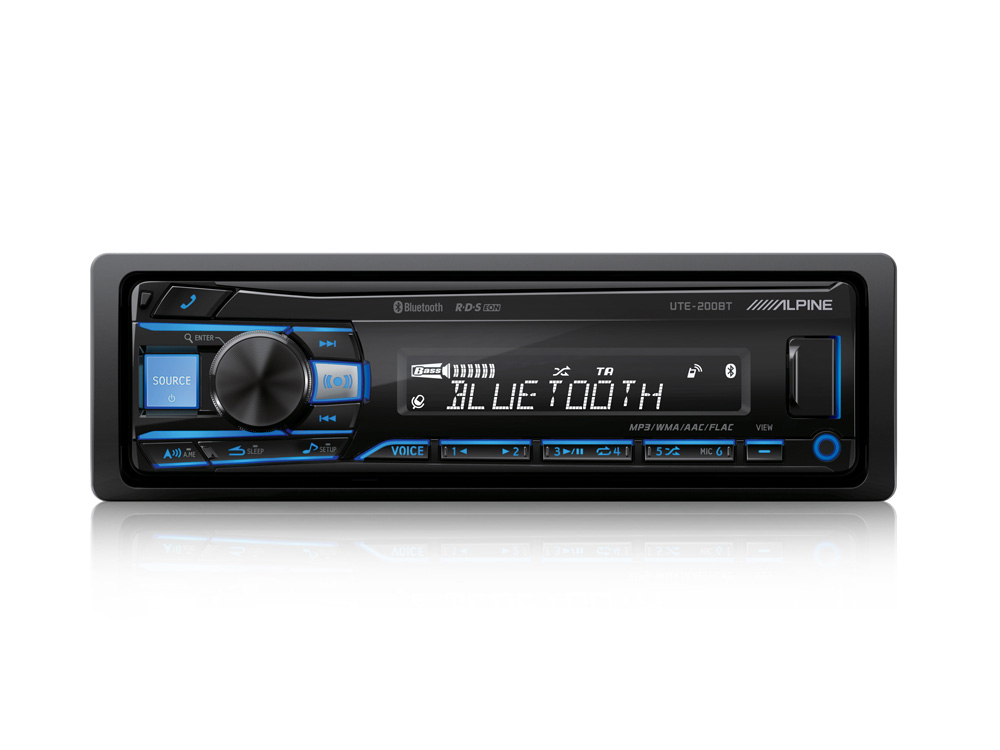

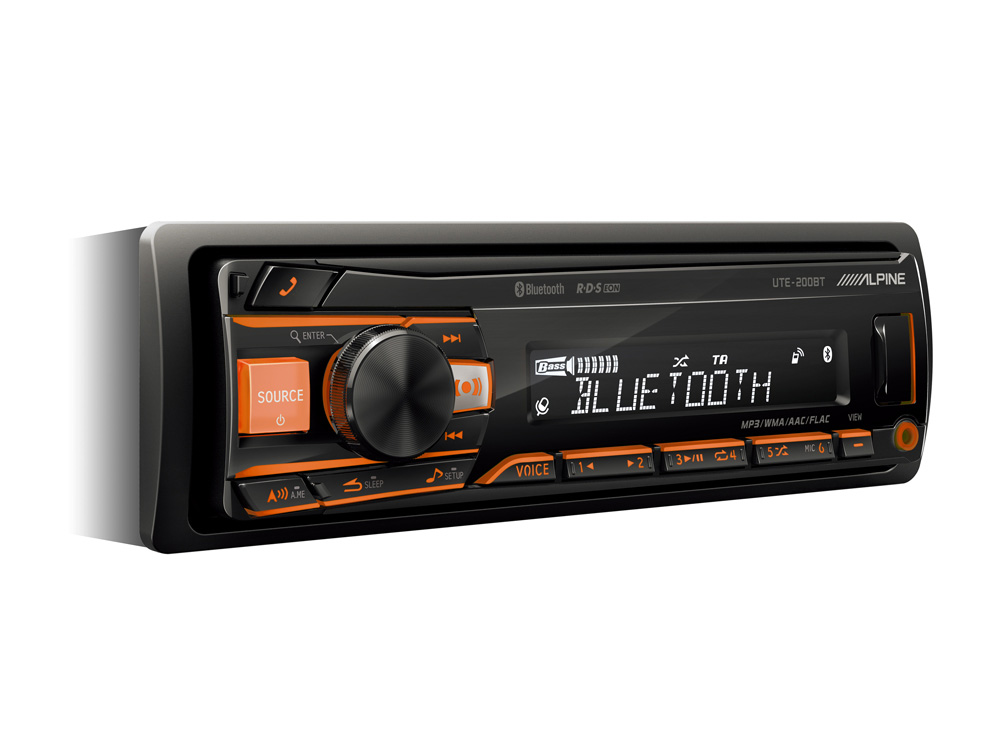

The UTE-200BT is an affordable single-DIN solution that steps up your sound to Alpine quality and offers many connectivity features to keep you entertained on the road.
Χαρακτηριστικά & Λεπτομέρειες
Tuner
Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
Memory: Auto Memory
RDS
RDS Functions: AF, TA, TP, PTY, EON
PTY (Programme Type) Display
BLUETOOTH®
Built-in BLUETOOTH® Module
Hands Free Calling: HFP (Hands Free Profile)
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible
Phone Book Search
Voice Dial Operation
Auto Answer
Call Waiting
Call History Display: Phone Book Call, Dialled Call, Received Call
Speech Volume Level Adjustment
Hands-Free Phone Sound Setting
Firmware Updatable
Microphone Included
Made for iPhone® / iPod®
Connection: USB connection (KCU-445i Required)
Made for iPod/iPhone
M.I.X. (Shuffle) Play: Track
Repeat: All, Track
Battery Charging
USB Media Connection
Front USB Connection
MP3, WMA, AAC, FLAC Playback
Folder Up/Down
M.I.X. Random Play
Repeat: Track, Album, All
USB AOA (Android Open Accessory) 2.0
Sound Tuning
Subwoofer Level Adjustment
BASS ENGINE SQ: Level Control 0-6
Subwoofer Phase Select: 0°/180°
Subwoofer System Select
High Pass Filter
Low Pass Filter
2V Voltage 2PreOuts
10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
3-band Parametric Equalizer
General
Power Output: 4 x 50 W High Power Amplifier
Display LCD: 14 Segments White LCD Display 1Line
Control Type: Rotary Encoder Knob
Variable RGB Illumination Buttons

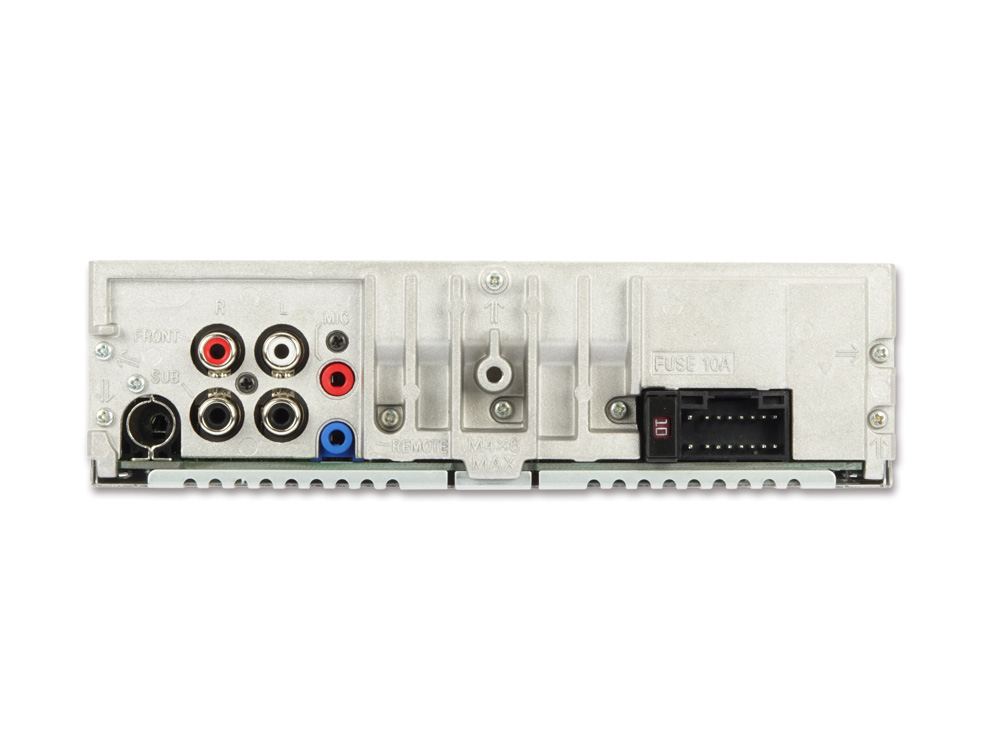

2 PreOuts (2V, Front + Rear/Subwoofer)
Multi Bit DAC
Front AUX Input (3.5mm mini jack)
Steering Wheel Remote Control Ready
-20dB Mute
Remote Control Ready
Clock
Detachable DIN Trim Plate
Detachable Face Plate
Dimmer
Power Antenna Lead
Remote Turn-On
Max Power Output Ratings
Max Power Output: 4 x 50W
FM Tuner
Tuning Range: 87.5 – 108.0 MHz
MW Tuner
Tuning Range: 531 – 1,602 kHz
LW Tuner
Tuning Range: 153 – 279 kHz
USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1,000 mA
File System: FAT 16/32
Sound Tuning
Subwoofer Level Adjustment: 0 to 15 dB
Subwoofer Phase Setting: 0° or 180°
High Pass Filter: Off, 80/100/120 Hz
Low Pass Filter: Off, 80/100/120 Hz
Bass Level Control Range: ±7 dB at 100Hz
Bass Center Frequency: 60/80/100/120 Hz
Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
Treble Level Control Range: ±7 dB at 10 kHz
Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
Mid Level Control Range: ±7 dB
Mid Center Frequency: 500/1k/1.5k/2.5k Hz
Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
General
Power Requirement: 12V.DC
Pre Output Voltage (Before Clipping): 2V / 10k ohms
Aux In: 1.4V / 10k ohms
Maximum Mounting Angle: 30°
Weight: 0.8 kg
Dimensions
Din Size: 1 DIN
Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
