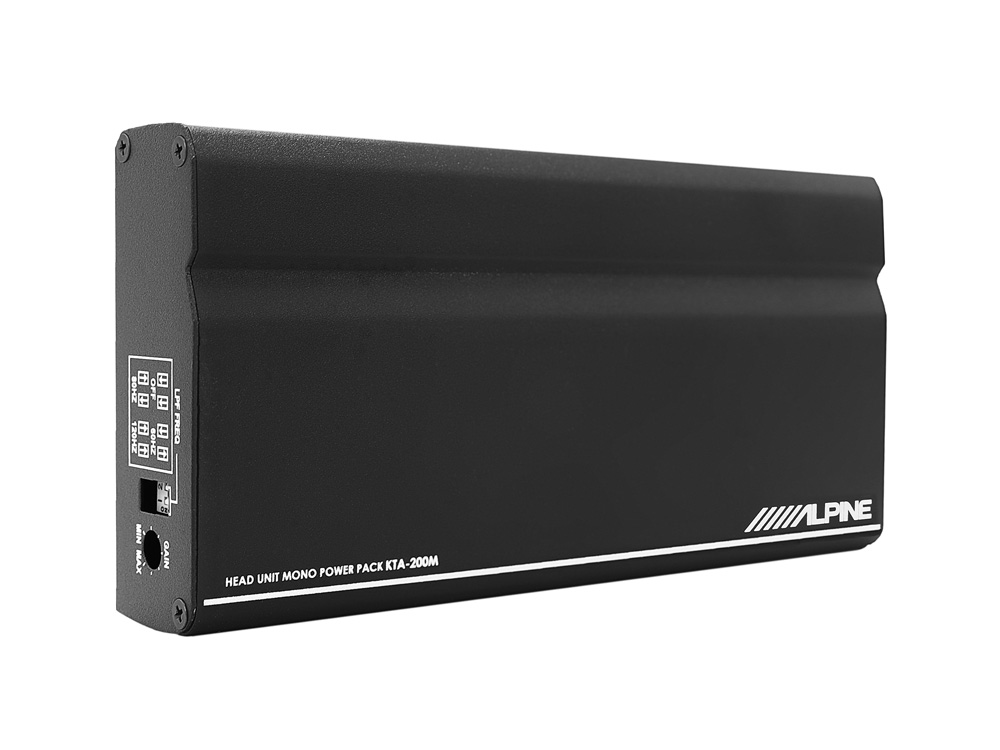

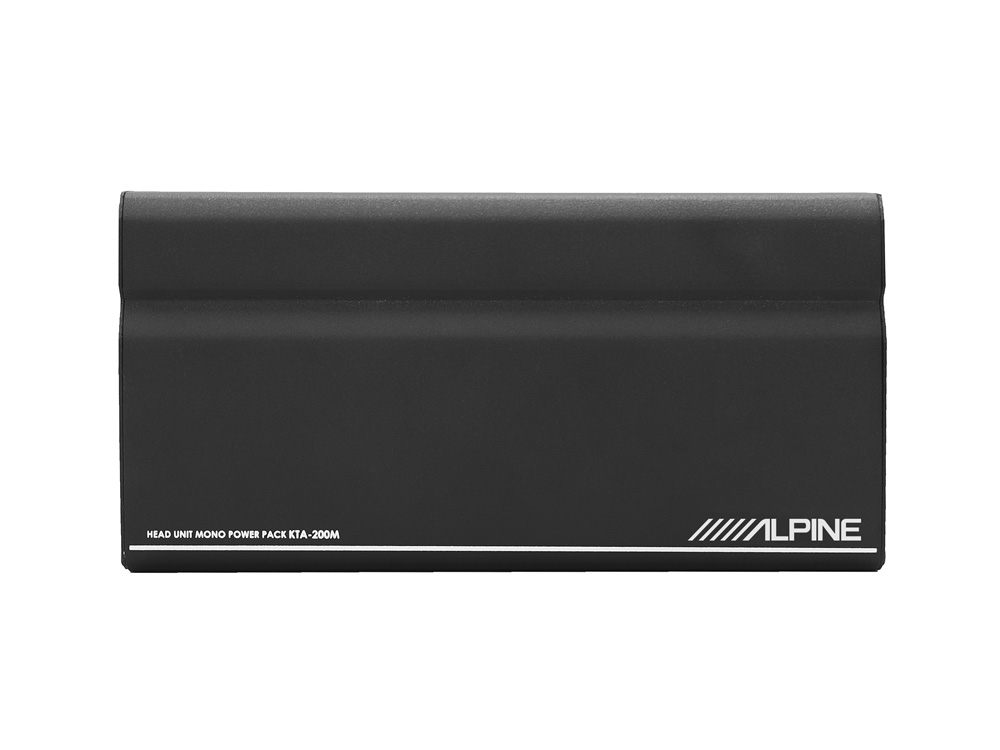

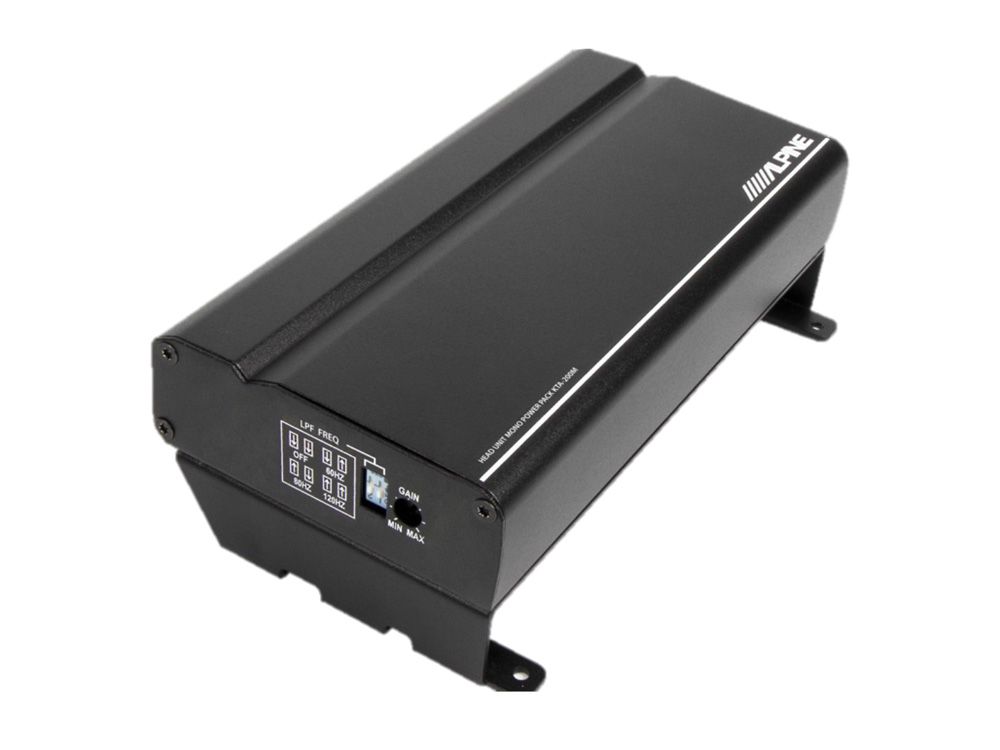

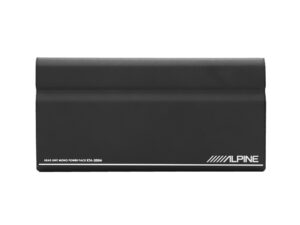

The KTA-200M is a very compact mono amplifier, that is mainly designed to be power-stacked with the iLX-W650BT, but can also be used stand-alone in any universal configuration.
Featuring Alpine’s Dynamic Peak Power (DPP) technology, the KTA-200M can produce 400 Watts of Alpine’s Exclusive Dynamic Peak Power for big subwoofer power in a small space.
Χαρακτηριστικά & Λεπτομέρειες
FEATURES
Install
- Terminal Layout: Single-side 22-pin connector for speaker and power cables
- Small footprint for easy installation in a 2DIN dock
General
- Class-D (Digital) Amplification Circuit with Alpine’s Dynamic Peak Power (DPP) Technology
- Channel Design: mono
- DIP Switches
- RCA input
- Crossover: Adjustable Low-Pass Filter (LPF)
- Gain Control: on-board dial and RUX-KNOB2 compatible

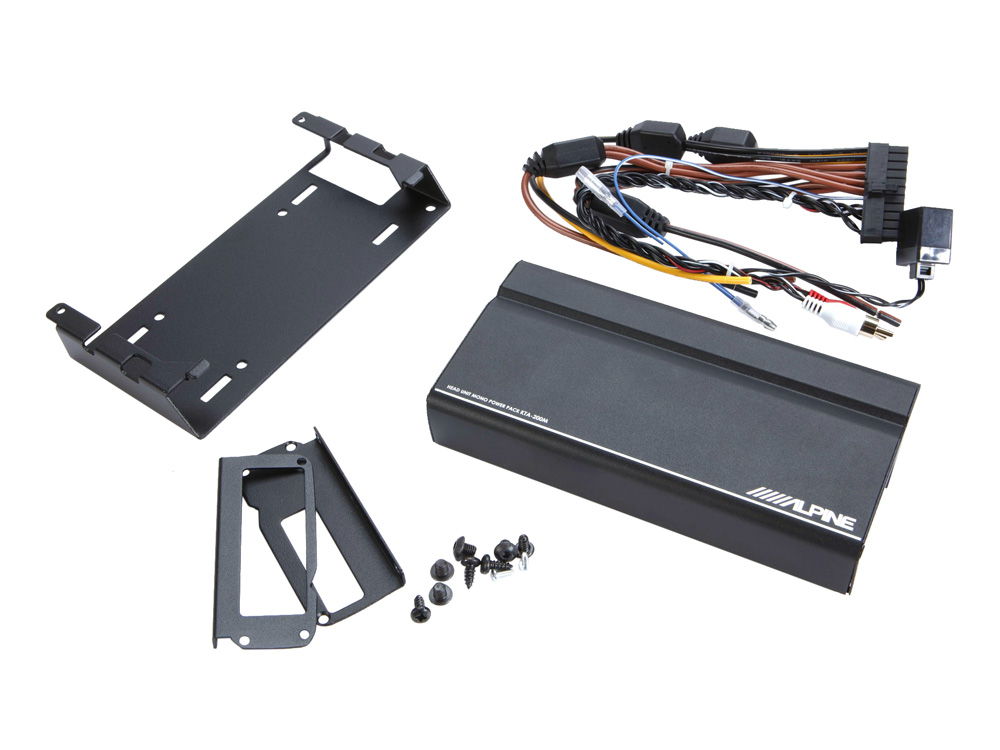

- Included Power-Stack bracket and screws for back-mount to iLX-W650BT
- Included cable harness
SPECIFICATIONS
RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 200W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 200W
DPP (Dynamic Peak Power) Power Ratings
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 400W
Sound Tuning
- Crossover: Selectable LPF: Off/ 60Hz/ 80Hz/ 120Hz (-24dB/Oct.)
General
- THD+N (@ 1W into 4 Ohms): <0.2%
- S/N Ratio (ref: 1W into 4 Ohms): >85dB
- Power Requirements: 14.4 V.DC (9 – 16 V allowable)
- Weight: 0.6kg
Dimensions
- Width: 89mm
- Height: 36mm (39mm with attached universal bracket)
- Length: 181mm (198mm with attached universal bracket)
